ETI product series

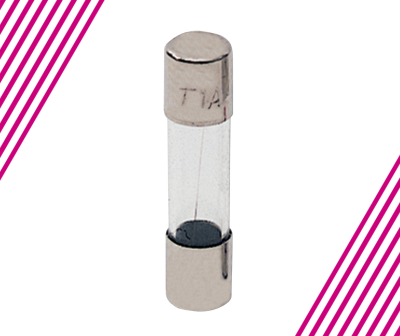

ETI offers a comprehensive range of mini fuses in various sizes and characteristics, designed to meet different protection needs. These fuses are available in 5x20mm and 6.3x32mm sizes, and with different operating characteristics: fast (F), delayed (T), very fast (FF), and high-breaking capacity (HF, HT). The rated voltage for these fuses is 250V a.c. or 500V a.c..
- General Characteristics:
- Rated voltage: 250V a.c. or 500V a.c..
- Compliant with IEC 60127-1 and IEC 60127-2 standards.
- Miniature fuses are used for protection of electronic and telecommunication devices.
- Miniature fuses F and FF are used for semiconductors protection such as transistors, diods, and thyristors.
- Different operating characteristics: fast (F), delayed (T), very fast (FF), and high-breaking capacity (HF, HT).
- CH Minifuse 5x20 F (Fast Operation):
- Breaking capacity of 35A for most models, and 63A for higher current ratings.
- Designed for applications requiring fast protection.
- CH Minifuse 5x20 T (Delayed Operation):
- Breaking capacity of 35A, 40A, 50A, or 63A depending on current rating.
- Suitable for applications with inrush currents or transient loads.
- CH Minifuse 6.3x32 F (Fast Operation):
- Breaking capacity of 35A, 100A or 200A, depending on current rating.
- Designed for applications requiring fast protection.
- CH Minifuse 6.3x32 T (Delayed Operation):
- Breaking capacity of 35A, 100A, or 200A depending on current rating.
- Suitable for applications with inrush currents or transient loads.
- CH Minifuse 5x20 FF (Very Fast Operation):
- Breaking capacity of 1.5kA.
- Specifically designed for semiconductor protection.
- CH Minifuse 5x20 HF (High-Breaking Capacity):
- Breaking capacity of 1.5kA.
- Designed for protection of electronic devices.
- CH Minifuse 5x20 HT (High-Breaking Capacity Delayed):
- Breaking capacity of 1.5kA.
- Designed for protection of electronic devices.
- CH Minifuse 6.3x32 FF (Very Fast Operation):
- Breaking capacity of 1.5kA.
- Specifically designed for semiconductor protection.
- CH Minifuse 6.3x32 HF (High-Breaking Capacity):
- Breaking capacity of 1.5kA.
- Designed for protection of electronic devices.
- CH Minifuse 6.3x32 HT (High-Breaking Capacity Delayed):
- Breaking capacity of 1.5kA.
- Designed for protection of electronic devices.
