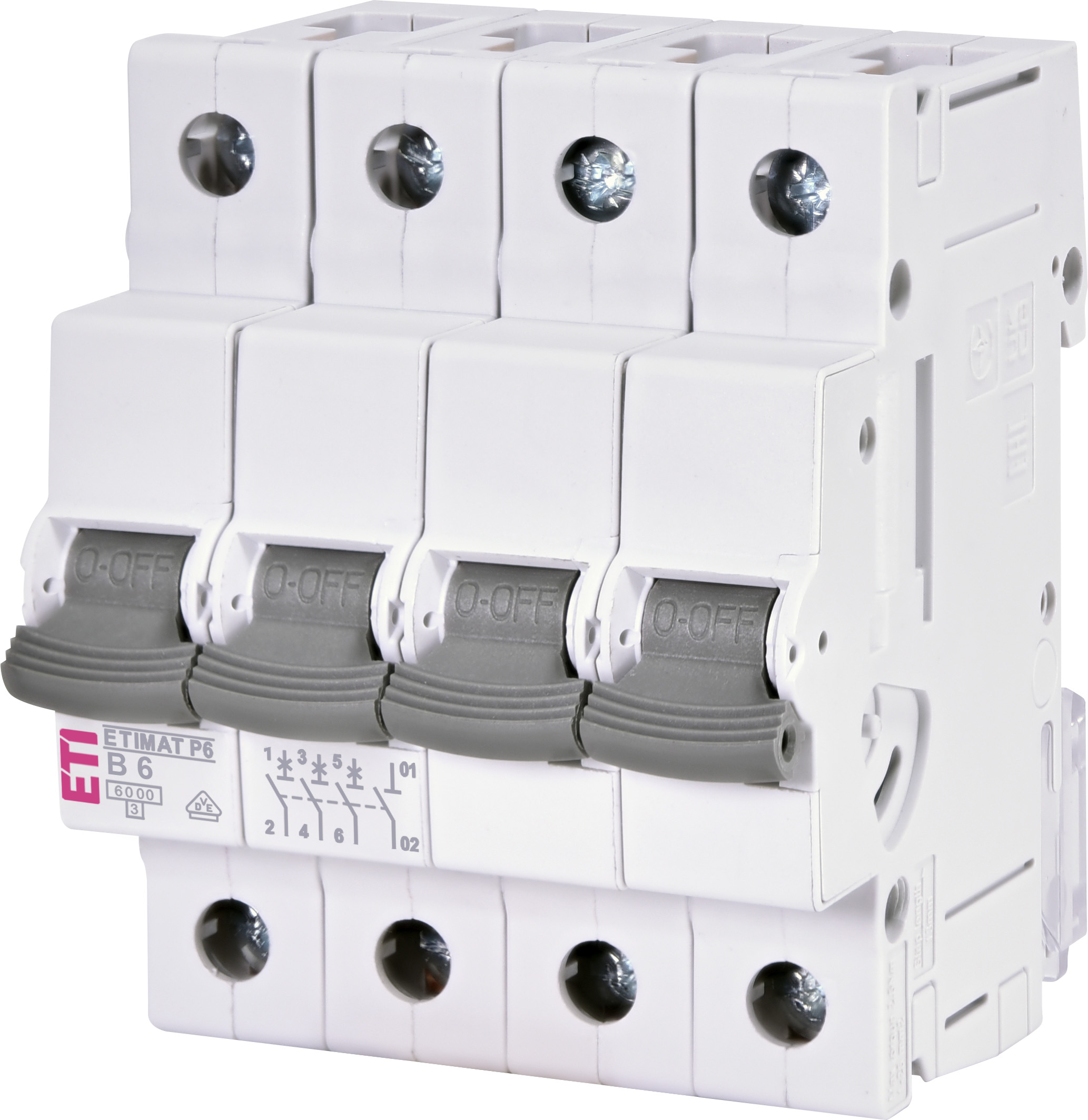

Întrerupător de circuit ETIMAT P6 3p+N B6 001900407
Preț cu TVA
79.04 Lei
Stoc
3
Disponibil
în 24h
Putem livra acest produs in 24 de ore.
Specificatii
- Cod ETI:
- 001900407
- Descriere:
- ETIMAT P6 3p+N B6
- Denumire clasă:
- Întrerupător de circuit
- Curent nominal (A):
- 6
- Caracteristică de întrerupere:
- B
- Număr de poli:
- 3+N
- Capacitatea de rupere (kA):
- 6
- Tipul voltajului :
- AC
- Tensiunea nominală(V):
- 415
- Frecvență nominală (Hz):
- 50/60
- Tensiunea nominala de rezistenta Uimp (kV):
- 6
- Secțiune transversală nominală:
- 1...25
- Standarde:
- 60898-1, 60947-2
- Funcție:
- MCB
Documente
Date logistica
Produse
- Cod produs EAN
- 3838895922513
- Greutatea produsului
- 370 g
- Tarif vamal
- 85362010
- logis_net_width
- 71 mm
- logis_net_height
- 89 mm
- logis_net_depth
- 75 mm
Ambalare de baza
- Cantitate
- 3
- EAN
- 3838895922520
- Greutate
- 1170 g
ambalare pentru transport
- Cantitate
- 27
- EAN
- 3838895922537
- Greutate
- 10.85 kg
- Cantitate. transport
- 1404
Clasificare ETIM
- Clasificare
- EC000042
- Denumire clasă
- Miniature circuit breaker (MCB)
- Release characteristic
- B
- Number of poles (total)
- 4
- Number of protected poles
- 3
- Rated current
- 6A
- Rated voltage
- 415V
- Rated insulation voltage Ui
- 500V
- Rated impulse withstand voltage Uimp
- 6kV
- Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
- 6kA
- Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
- 6kA
- Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
- 6kA
- Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
- 6kA
- Voltage type
- AC
- Type of drive
- 50…60Hz
- Current limiting class
- 3
- Suitable for flush-mounted installation
- Da
- Concurrently switching neutral conductor
- Da
- Over voltage category
- 3
- Pollution degree
- 2
- Additional equipment possible
- Da
- Width in number of modular spacings
- 4
- Built-in depth
- 70mm
- Degree of protection (IP)
- IP20
- Ambient temperature during operating
- -40…70°C
- Connectable conductor cross section multi-wired
- 1…25mm²
- Connectable conductor cross section solid-core
- 1…25mm²
