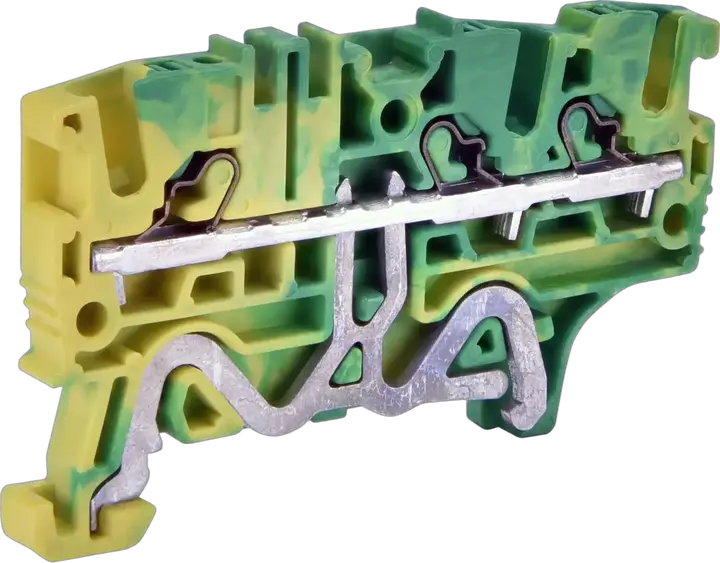

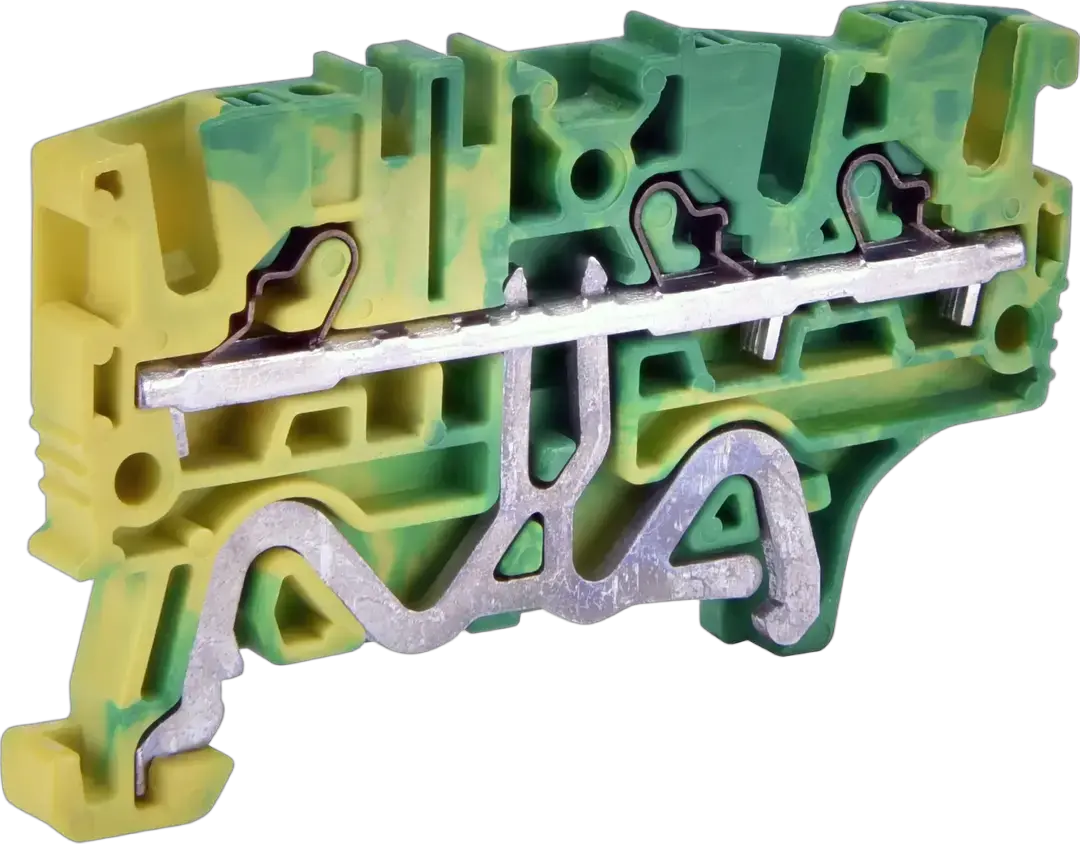

ESH-EFCE.2/1+2 Conexiuni de legare la pământ

Disponibil în zile 14

Cod ETI:: 003903274
Utilizare cu:: push-in spring clamp
Accesorii funcționale:: Red partitions
Grup Catalog:: ESH Push-in Spring Clamp Terminal Blocks
Tip montaj:: TH 35
Tip:: ESH Push-in Spring Clamp Terminal Blocks
Nivel:: Singura
Culoare:: Galben, Verde
Secțiune transversală nominală:: 2 mm²
Tensiunea nominala de rezistenta Uimp:: 6 kV
Sectiunea transversala a conductorului:: 2-4 mm²
Conexiune incrucisata :: Yes
Sectiune finala :: Yes

Accesorii

Produs

EAN code for a single product: 3838895869979
Greutate: 0,011 kg
Net width: 5,2 mm
Net height: 64,8 mm
Net depth: 38,7 mm
Stock unit of measure: pcs

Ambalare transport

Transport packaging quantity: 50 pcs
EAN code for a transport packaging: 3838895869986
Transport packaging weight: 0,613 kg
Transport Packaging Dimensions Height: 85 mm
Transport Packaging Dimensions Width: 160 mm
Transport Packaging Dimensions Depth: 100 mm
Transport packaging volume: 1,36 dm³
Pallet quantity: 33.000 pcs
Customs tariff: 85369010

Width: 5,2 mm
Material insulation body: Other
Mounting method: DIN rail (top hat rail) 35 mm
Number of levels: 1
Type of electrical connection 1: Spring clamp connection
Number of clamp positions per level: 3
Closing plate required: Da
Type of electrical connection 2: Spring clamp connection
Colour: Green/yellow
Height: 39,2 mm
Inflammability class of insulation material according to with UL94: V0
Connectable conductor cross section solid-core(Min): 0,2 mm²
Connectable conductor cross section multi-wired(Min): 0,2 mm²
Connectable conductor cross section fine-strand with cable end sleeve(Min): 0,2 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 0,2 mm²
Operating temperature(Min): -40 °C
Connectable conductor cross section solid-core(Max): 4 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 4 mm²
Connectable conductor cross section multi-wired(Max): 4 mm²
Operating temperature(Max): 110 °C
Connectable conductor cross section fine-strand with cable end sleeve(Max): 2,5 mm²

Clasificare ETIM – versiunea 9.0
