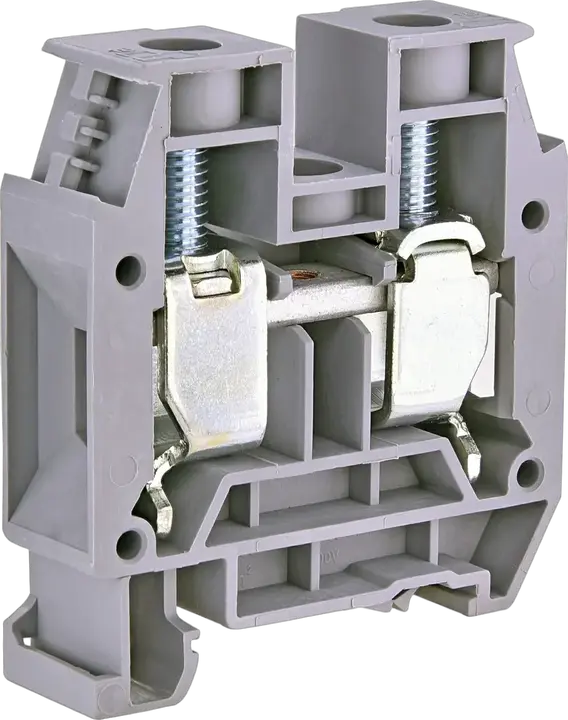

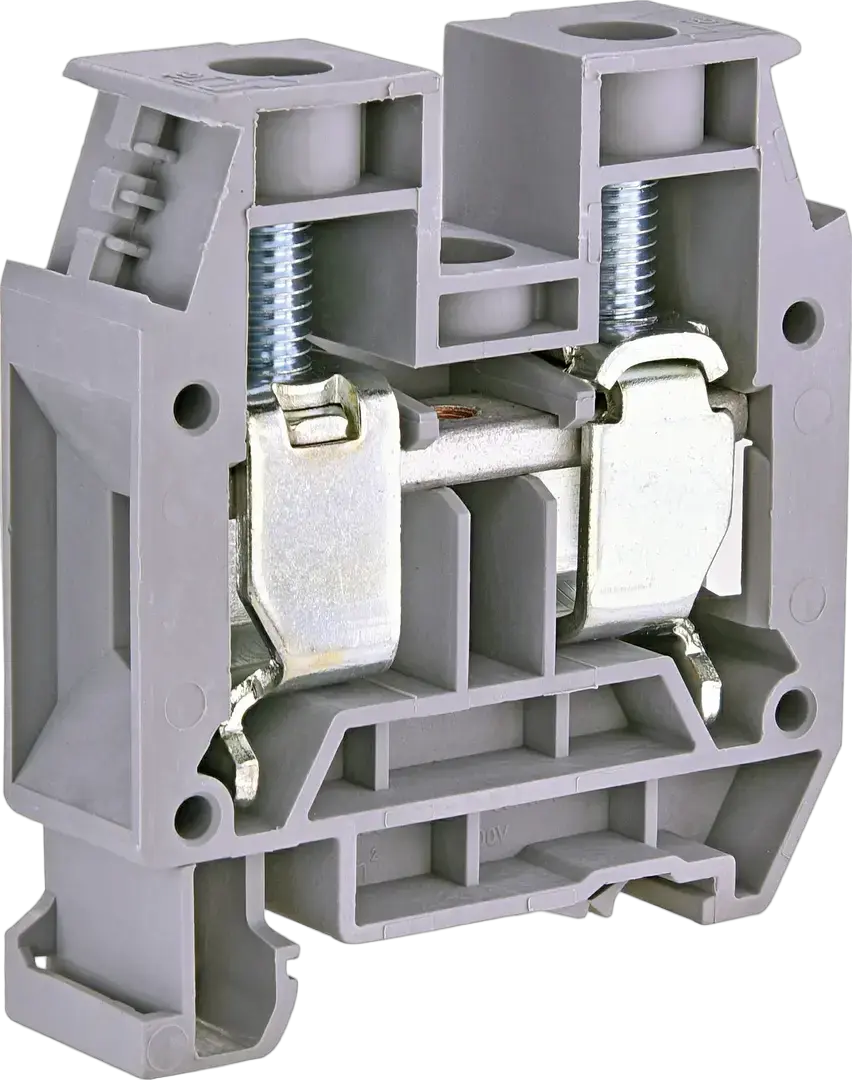

ESC-CBC.35 Bloc terminal

Name: ESC-CBC.35
Brand: ETI Elektroelement d.o.o.
SKU: 003903005

Disponibil în ore 24

Stoc produse 200

Preț incl. TVA 12,41 LEI

Cod ETI:: 003903005
Tensiune nominală AC:: 1000 V
Tensiune nominală DC:: 1000 V
Grup Catalog:: Blocuri terminale tip șurub ES
Tip montaj:: TH 35
Tip:: ES Screw Type Terminal Blocks
Nivel:: Singura
Culoare:: Grei
Secțiune transversală nominală:: 35 mm²
Tensiunea nominala de rezistenta Uimp:: 12 kV
Curent maxim cu sectiunea transversala:: 101 mm²
Curent maxim cu sectiunea maxima transversala:: 160 mm²
Sectiunea transversala a conductorului:: 2.5-50 mm²
Conexiune incrucisata :: Yes
Sectiune finala :: Yes

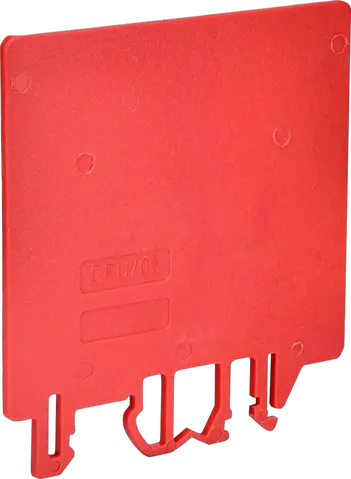

Accesorii

Produs

EAN code for a single product: 3838895859666
Greutate: 60 g
Net width: 16 mm
Net height: 56 mm
Net depth: 62 mm
Stock unit of measure: pcs

Ambalare transport

Transport packaging quantity: 50 pcs
EAN code for a transport packaging: 3838895787952
Transport packaging weight: 2,98 kg
Transport Packaging Dimensions Height: 75 mm
Transport Packaging Dimensions Width: 290 mm
Transport Packaging Dimensions Depth: 210 mm
Transport packaging volume: 4,568 dm³
Pallet quantity: 7.800 pcs
Customs tariff: 85369010

Explosion-tested version 'Ex e': Da
Width: 56 mm
Material insulation body: Thermoplastic
Rated current In: 134 A
Mounting method: DIN rail (top hat rail) 35 mm
Number of levels: 1
Type of electrical connection 1: Screw connection
Number of clamp positions per level: 2
Closing plate required: Da
Type of electrical connection 2: Screw connection
Rated voltage: 1.000 V
Colour: Grey
Height: 63 mm
Inflammability class of insulation material according to with UL94: V0
Connectable conductor cross section solid-core(Min): 2,5 mm²
Connectable conductor cross section multi-wired(Min): 2,5 mm²
Connectable conductor cross section fine-strand with cable end sleeve(Min): 2,5 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 2,5 mm²
Operating temperature(Min): -40 °C
Connectable conductor cross section solid-core(Max): 50 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 50 mm²
Connectable conductor cross section multi-wired(Max): 50 mm²
Operating temperature(Max): 100 °C
Connectable conductor cross section fine-strand with cable end sleeve(Max): 35 mm²
