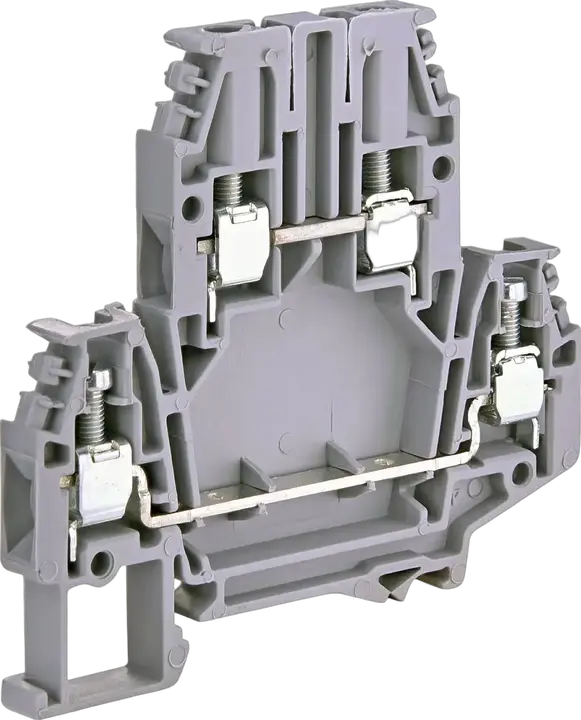

ESC2-DBC.4 Bloc terminal

Name: ESC2-DBC.4
Brand: ETI Elektroelement d.o.o.
SKU: 003903054

Disponibil în ore 24

Stoc produse 73

Preț incl. TVA 7,25 LEI

Cod ETI:: 003903054
Tensiune nominală AC:: 630 V
Tensiune nominală DC:: 630 V
Grup Catalog:: Blocuri terminale tip șurub ES
Tip montaj:: TH 35
Tip:: ES Screw Type Terminal Blocks
Nivel:: Dublu
Culoare:: Grei
Secțiune transversală nominală:: 4 mm²
Tensiunea nominala de rezistenta Uimp:: 8 kV
Curent maxim cu sectiunea transversala:: 32 mm²
Sectiunea transversala a conductorului:: 0.2-6 mm²
Conexiune incrucisata :: Yes

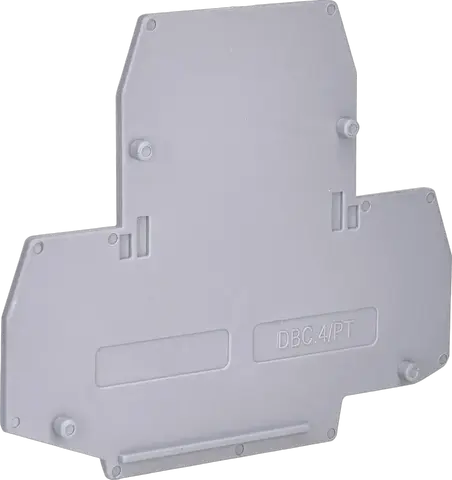

Sectiune finala :: Yes

Accesorii

Produs

EAN code for a single product: 3838895861010
Greutate: 20 g
Net width: 6 mm
Net height: 70 mm
Net depth: 65 mm
Stock unit of measure: pcs

Ambalare transport

Transport packaging quantity: 100 pcs
EAN code for a transport packaging: 3838895788508
Transport packaging weight: 1,935 kg
Transport Packaging Dimensions Height: 75 mm
Transport Packaging Dimensions Width: 290 mm
Transport Packaging Dimensions Depth: 210 mm
Transport packaging volume: 4,568 dm³
Pallet quantity: 15.600 pcs
Customs tariff: 85369010

Width: 6 mm
Material insulation body: Thermoplastic
Rated current In: 32 A
Mounting method: DIN rail (top hat rail) 35 mm
Number of levels: 2
Type of electrical connection 1: Screw connection
Number of clamp positions per level: 2
Closing plate required: Da
Type of electrical connection 2: Screw connection
Rated voltage: 630 V
Colour: Grey
Height: 66 mm
Inflammability class of insulation material according to with UL94: V0
Connectable conductor cross section solid-core(Min): 0,2 mm²
Connectable conductor cross section multi-wired(Min): 0,2 mm²
Connectable conductor cross section fine-strand with cable end sleeve(Min): 0,2 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 0,2 mm²
Operating temperature(Min): -40 °C
Connectable conductor cross section solid-core(Max): 6 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 6 mm²
Connectable conductor cross section multi-wired(Max): 6 mm²
Operating temperature(Max): 100 °C
Connectable conductor cross section fine-strand with cable end sleeve(Max): 4 mm²

Clasificare ETIM – versiunea 9.0
