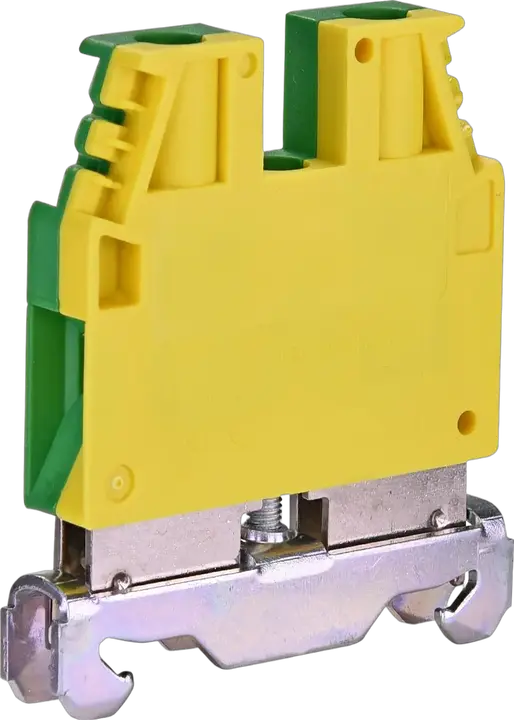

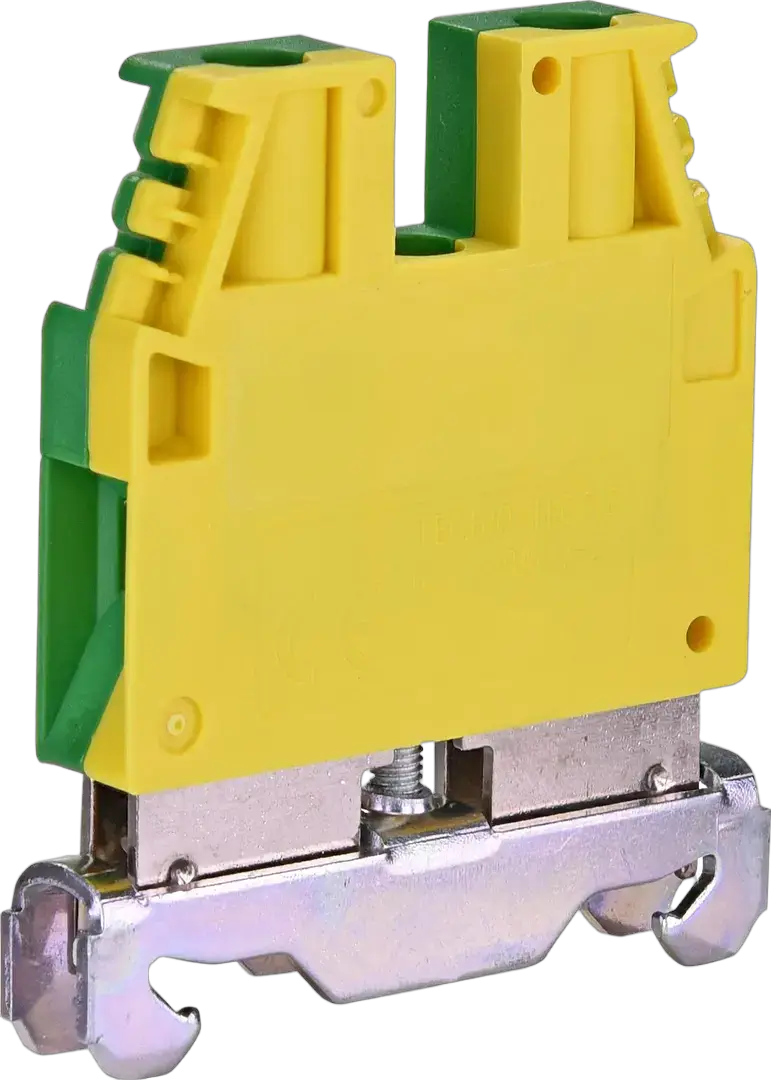

ESC-TEC.6/O Conexiuni de legare la pământ

Name: ESC-TEC.6/O
Brand: ETI Elektroelement d.o.o.
SKU: 003903070

Disponibil în ore 24

Stoc produse 83

Preț incl. TVA 10,15 LEI

Cod ETI:: 003903070
Grup Catalog:: Blocuri terminale tip șurub ES
Tip montaj:: DIN rail 35 mm
Tip:: ES Screw Type Terminal Blocks
Nivel:: Singura
Culoare:: Verde, Galben
Secțiune transversală nominală:: 6 mm²
Tensiunea nominala de rezistenta Uimp:: 8 kV
Curent maxim cu sectiunea transversala:: 41 mm²
Sectiunea transversala a conductorului:: 5-10 mm²
Conexiune incrucisata :: ✗
Sectiune finala :: ✗

Accesorii

Produs

EAN code for a single product: 3838895861294
Greutate: 29,3 g
Net width: 8 mm
Net height: 47 mm
Net depth: 48,77 mm
Stock unit of measure: pcs

Ambalare transport

Transport packaging quantity: 45 pcs
EAN code for a transport packaging: 3838895788669
Transport packaging weight: 1,409 kg
Transport Packaging Dimensions Height: 150 mm
Transport Packaging Dimensions Width: 70 mm
Transport Packaging Dimensions Depth: 150 mm
Transport packaging volume: 1,575 dm³
Pallet quantity: 19.125 pcs
Customs tariff: 85369010

Width: 8 mm
Material insulation body: Thermoplastic
Mounting method: DIN rail (top hat rail) 35 mm
Number of levels: 1
Type of electrical connection 1: Screw connection
Number of clamp positions per level: 2
Type of electrical connection 2: Screw connection
Colour: Green/yellow
Height: 52 mm
Inflammability class of insulation material according to with UL94: V0
Connectable conductor cross section solid-core(Min): 0,5 mm²
Connectable conductor cross section multi-wired(Min): 0,5 mm²
Connectable conductor cross section fine-strand with cable end sleeve(Min): 0,5 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 0,5 mm²
Operating temperature(Min): -40 °C
Connectable conductor cross section solid-core(Max): 10 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 10 mm²
Connectable conductor cross section multi-wired(Max): 10 mm²
Operating temperature(Max): 100 °C
Connectable conductor cross section fine-strand with cable end sleeve(Max): 6 mm²

Clasificare ETIM – versiunea 9.0
