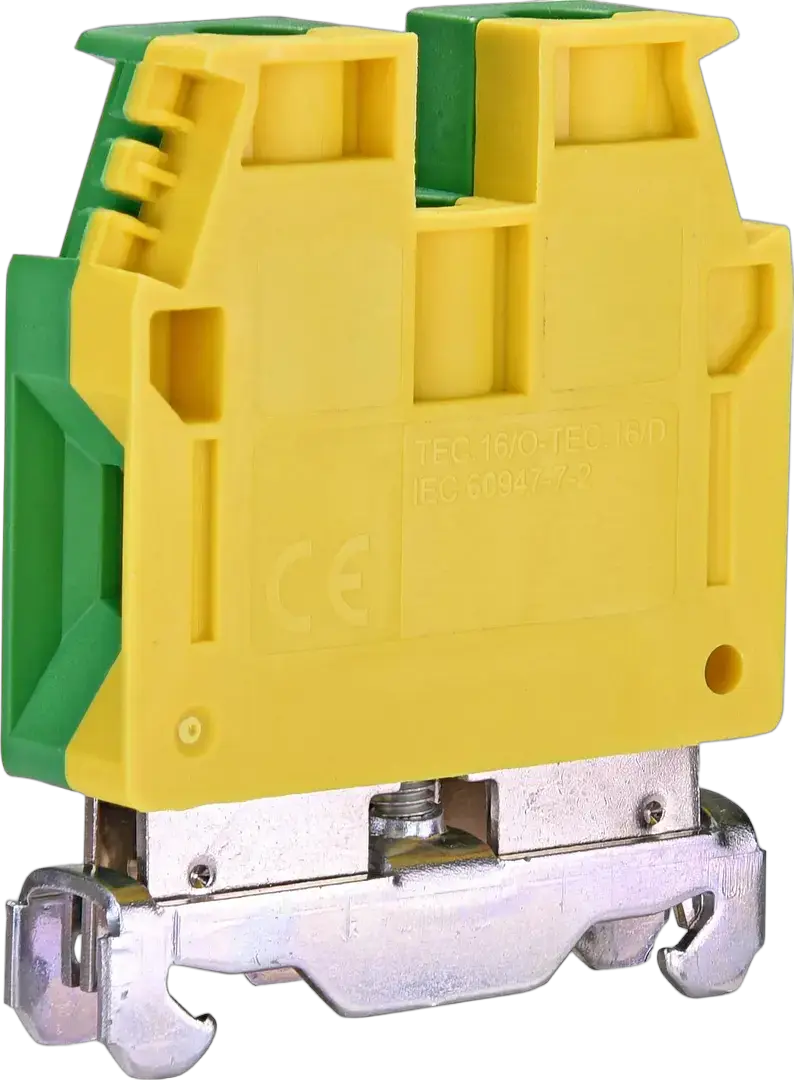

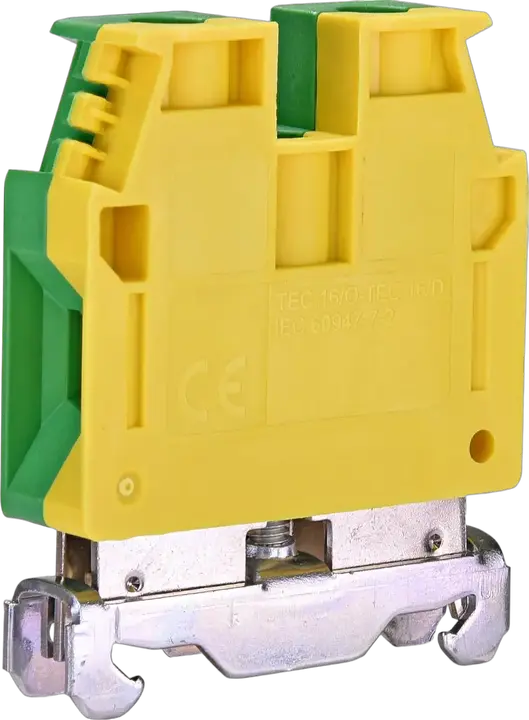

ESC-TEC.16/O Conexiuni de legare la pământ

Name: ESC-TEC.16/O
Brand: ETI Elektroelement d.o.o.
SKU: 003903072

Disponibil în ore 24

Stoc produse 170

Preț incl. TVA 17,11 LEI

Cod ETI:: 003903072
Grup Catalog:: Blocuri terminale tip șurub ES
Tip montaj:: DIN rail 35 mm
Tip:: ES Screw Type Terminal Blocks
Nivel:: Singura
Culoare:: Verde, Galben
Secțiune transversală nominală:: 16 mm²
Tensiunea nominala de rezistenta Uimp:: 8 kV
Curent maxim cu sectiunea transversala:: 76 mm²
Conexiune incrucisata :: ✗
Sectiune finala :: ✗

Accesorii

Produs

EAN code for a single product: 3838895861317
Greutate: 48,7 g
Net width: 12 mm
Net height: 47 mm
Net depth: 53,3 mm
Stock unit of measure: pcs

Ambalare transport

Transport packaging quantity: 30 pcs
EAN code for a transport packaging: 3838895788683
Transport packaging weight: 1,502 kg
Transport Packaging Dimensions Height: 70 mm
Transport Packaging Dimensions Width: 150 mm
Transport Packaging Dimensions Depth: 150 mm
Transport packaging volume: 1,575 dm³
Pallet quantity: 11.970 pcs
Customs tariff: 85369010

Width: 12 mm
Material insulation body: Thermoplastic
Mounting method: DIN rail (top hat rail) 35 mm
Number of levels: 1
Type of electrical connection 1: Screw connection
Number of clamp positions per level: 2
Type of electrical connection 2: Screw connection
Colour: Green/yellow
Height: 56 mm
Inflammability class of insulation material according to with UL94: V0
Connectable conductor cross section solid-core(Min): 1,5 mm²
Connectable conductor cross section multi-wired(Min): 1,5 mm²
Connectable conductor cross section fine-strand with cable end sleeve(Min): 1,5 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 1,5 mm²
Operating temperature(Min): -40 °C
Connectable conductor cross section solid-core(Max): 25 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 25 mm²
Connectable conductor cross section multi-wired(Max): 25 mm²
Operating temperature(Max): 100 °C
Connectable conductor cross section fine-strand with cable end sleeve(Max): 16 mm²

Clasificare ETIM – versiunea 9.0
