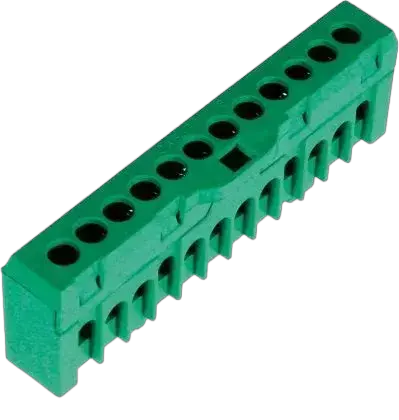

ESC-QBLOK1202 Bloc distribuție

Name: ESC-QBLOK1202
Brand: ETI Elektroelement d.o.o.
SKU: 003903207

Disponibil în ore 24

Stoc produse 64

Preț incl. TVA 26,11 LEI

Cod ETI:: 003903207
Tensiune nominală AC:: 500 V
Tensiune nominală DC:: 500 V
Grup Catalog:: Blocuri terminale tip șurub ES
Tip montaj:: TH 35
Tip:: ES Screw Type Terminal Blocks
Nivel:: Singura
Culoare:: Verde
Secțiune transversală nominală:: 10 mm²
Curent maxim cu sectiunea transversala:: 63 mm²
Curent maxim cu sectiunea maxima transversala:: 63 mm²
Sectiunea transversala a conductorului:: 16 mm²
Conexiune incrucisata :: No
Sectiune finala :: No
Funcție:: ES Screw Type Terminal Blocks

Produs

EAN code for a single product: 3838895862802
Greutate: 0,028 kg
Net width: 85,1 mm
Net height: 31,9 mm
Net depth: 15,5 mm
Stock unit of measure: pcs

Ambalare transport

Transport packaging quantity: 10 pcs
EAN code for a transport packaging: 3838895797722
Transport packaging weight: 0,503 kg
Transport Packaging Dimensions Height: 40 mm
Transport Packaging Dimensions Width: 134 mm
Transport Packaging Dimensions Depth: 116 mm
Transport packaging volume: 0,622 dm³
Pallet quantity: 14.000 pcs
Customs tariff: 85369010

Width: 16 mm
Material insulation body: Thermoplastic
Rated current In: 63 A
Mounting method: DIN rail (top hat rail) 35 mm
Number of levels: 1
Type of electrical connection 1: Screw connection
Type of electrical connection 2: Screw connection
Rated voltage: 500 V
Colour: Green
Height: 33 mm
Inflammability class of insulation material according to with UL94: V0
Connectable conductor cross section solid-core(Min): 1,5 mm²
Connectable conductor cross section multi-wired(Min): 1,5 mm²
Connectable conductor cross section fine-strand with cable end sleeve(Min): 1,5 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 1,5 mm²
Operating temperature(Min): -40 °C
Connectable conductor cross section solid-core(Max): 16 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 10 mm²
Connectable conductor cross section multi-wired(Max): 10 mm²
Operating temperature(Max): 100 °C
Connectable conductor cross section fine-strand with cable end sleeve(Max): 10 mm²

Clasificare ETIM – versiunea 9.0
