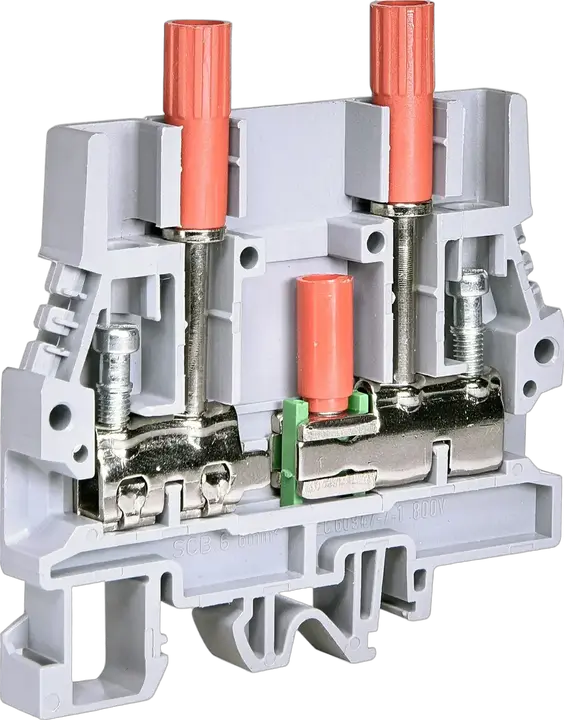

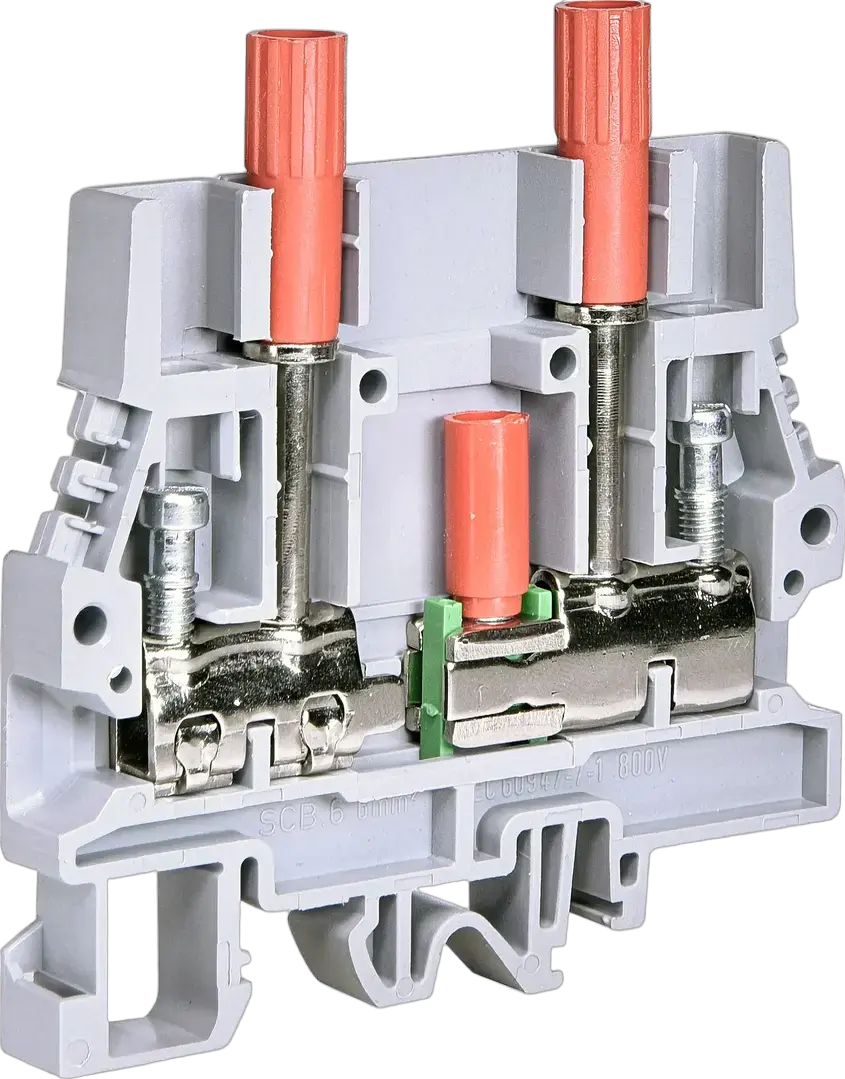

ESC-SCB.6/DD Bloc terminal

Cod ETI:: 003903221
Tensiune nominală AC:: 800 V
Tensiune nominală DC:: 800 V
Grup Catalog:: Terminale de linie SM
Tip montaj:: DIN rail 35 mm
Tip:: SM Line-up terminals
Nivel:: Dublu
Culoare:: Grei
Secțiune transversală nominală:: 6 mm²
Tensiunea nominala de rezistenta Uimp:: 8 kV
Curent maxim cu sectiunea transversala:: 41 A
Sectiunea transversala a conductorului:: 5-10 mm²
Conexiune incrucisata :: ✗
Sectiune finala :: ✓
Funcție:: Measuring terminals ES
Borne de prindere:: 6 mm²

Accesorii

Produs

EAN code for a single product: 3838895861195
Greutate: 0,036 kg
Net width: 8,2 mm
Net height: 69,5 mm
Net depth: 72,4 mm
Stock unit of measure: pcs

Ambalare transport

Transport packaging quantity: 80 pcs
EAN code for a transport packaging: 3838895830757
Transport packaging weight: 3,02 kg
Transport Packaging Dimensions Height: 75 mm
Transport Packaging Dimensions Width: 290 mm
Transport Packaging Dimensions Depth: 210 mm
Transport packaging volume: 4,568 dm³
Pallet quantity: 12.480 pcs
Customs tariff: 85369010

Type of cross disconnection: Sliding
Width: 8 mm
Material insulation body: Thermoplastic
Rated current In: 41 A
Mounting method: DIN rail (top hat rail) 35 mm
Number of levels: 1
Type of electrical connection 1: Screw connection
Type of slitting: Sliding
Number of clamp positions per level: 2
Type of electrical connection 2: Screw connection
Depth: 69 mm
Rated voltage: 800 V
Colour: Grey
With integrated test socket: ✓
Height: 76 mm
Inflammability class of insulation material according to with UL94: V0
Connectable conductor cross section solid-core(Min): 0,5 mm²
Connectable conductor cross section multi-wired(Min): 0,5 mm²
Connectable conductor cross section fine-strand with cable end sleeve(Min): 0,5 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 0,5 mm²
Operating temperature(Min): -40 °C
Connectable conductor cross section solid-core(Max): 10 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 10 mm²
Connectable conductor cross section multi-wired(Max): 10 mm²
Operating temperature(Max): 100 °C
Connectable conductor cross section fine-strand with cable end sleeve(Max): 6 mm²
