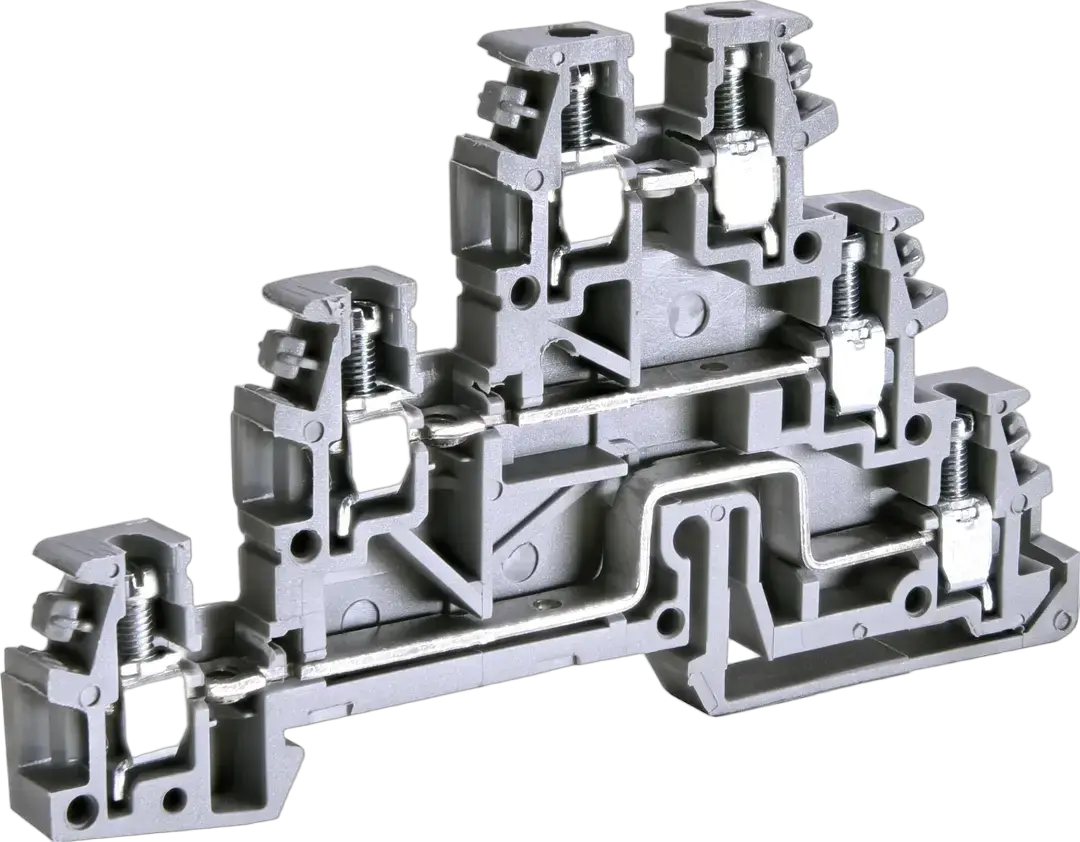

ESC-TLD.2 Bloc terminal

Disponibil în zile 14

Cod ETI:: 003903247
Tensiune nominală AC:: 250 V
Tensiune nominală DC:: 250 V
Grup Catalog:: Blocuri terminale tip șurub ES
Tip montaj:: TH 35
Tip:: ES Screw Type Terminal Blocks
Nivel:: Triplu
Culoare:: Grei
Secțiune transversală nominală:: 2.5 mm²
Tensiunea nominala de rezistenta Uimp:: 4 kV
Curent maxim cu sectiunea transversala:: 24 mm²
Sectiunea transversala a conductorului:: 2-4 mm²
Conexiune incrucisata :: No
Sectiune finala :: Yes

Accesorii

Produs

EAN code for a single product: 3838895862895
Greutate: 0,017 kg
Net width: 6,2 mm
Net height: 85,2 mm
Net depth: 50,5 mm
Stock unit of measure: pcs

Ambalare transport

Transport packaging quantity: 125 pcs
EAN code for a transport packaging: 3838895843481
Transport packaging weight: 2,29 kg
Transport Packaging Dimensions Height: 75 mm
Transport Packaging Dimensions Width: 290 mm
Transport Packaging Dimensions Depth: 210 mm
Transport packaging volume: 4,568 dm³
Pallet quantity: 19.500 pcs
Customs tariff: 85369010

Cross connectable: Da
Width: 85 mm
Material insulation body: Thermoplastic
Rated current In: 24 A
Mounting method: DIN rail (top hat rail) 35 mm
Number of levels: 3
LED switching for: No
Type of electrical connection 1: Screw connection
Number of clamp positions per level: 2
Closing plate required: Da
Type of electrical connection 2: Screw connection
Rated voltage: 250 V
Colour: Grey
Height: 52 mm
Inflammability class of insulation material according to with UL94: V0
Connectable conductor cross section solid-core(Min): 0,2 mm²
Connectable conductor cross section multi-wired(Min): 0,2 mm²
Connectable conductor cross section fine-strand with cable end sleeve(Min): 0,2 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 0,2 mm²
Operating temperature(Min): -40 °C
Connectable conductor cross section solid-core(Max): 4 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 4 mm²
Connectable conductor cross section multi-wired(Max): 4 mm²
Operating temperature(Max): 100 °C
Connectable conductor cross section fine-strand with cable end sleeve(Max): 2,5 mm²

Clasificare ETIM – versiunea 9.0
