004667334
Învechit

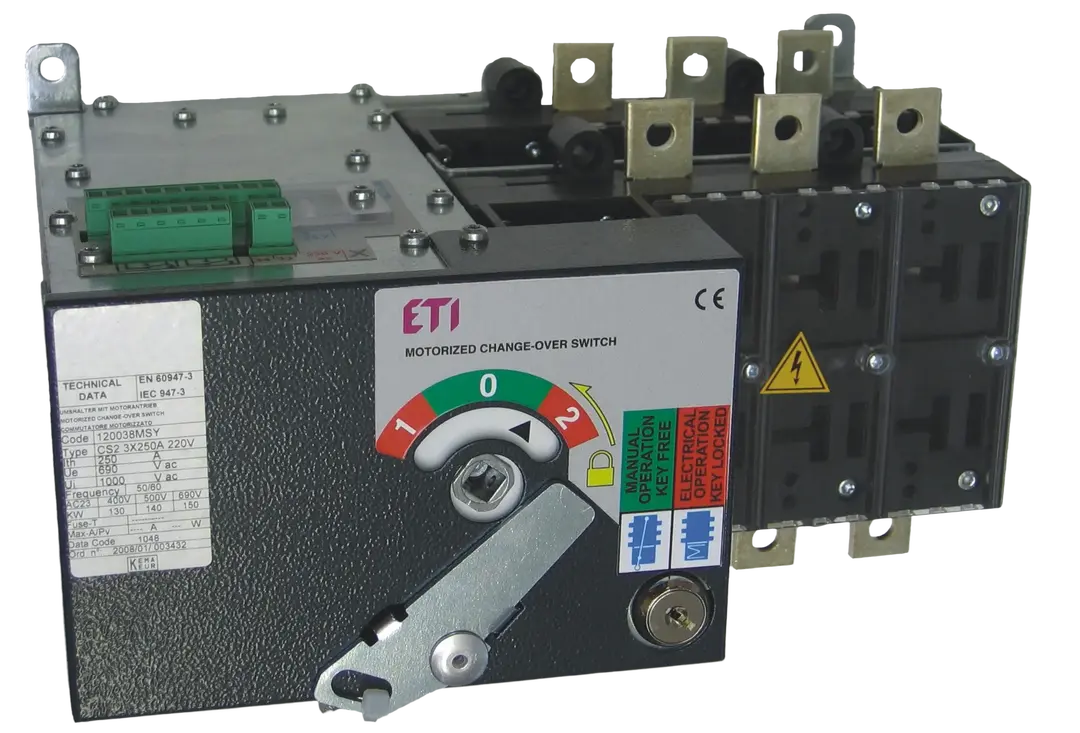

* LA4 MO 800A 4p CO 230VAC Comutator motor
Disponibil
La cerere
- Cod ETI:
- 004667334
- Funcție:
- Motorized change-over switches (1-0-2)
- Curent nominal:
- 800 A
- Tip:
- Motorized
- Număr de poli:
- 4
- Grup Catalog:
- LA MO CO
3 Documente
8 Logistică
Produs
- Greutate
- 24 kg
- Stock unit of measure
- pcs
Ambalare transport
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838895476610
- Transport packaging weight
- 24 kg
- Transport packaging volume
- 65,6 dm³
- Pallet quantity
- 27 pcs
- Customs tariff
- 85365080
12 ETIM
- Version as maintenance-/service switch
- Da
- Max. rated operation voltage Ue AC
- 1.000 V
- Suitable for floor mounting
- Da
- Rated permanent current Iu
- 800 A
- Motor drive integrated
- Da
- Type of control element
- Other
- Type of electrical connection of main circuit
- Screw connection
- Degree of protection (IP), front side
- IP20
- Number of poles
- 4
- Device construction
- Built-in device fixed built-in technique
- Rated operation power at AC-23, 400 V
- 330 kW
- Version as main switch
- Da
Clasificare ETIM – versiunea 9.0
18 Etichete
004667334Comutator motor* LA4 MO 800A 4p CO 230VACETISWITCHMotorised Change Over Load Break SwitchLA (1-0-2) MOLA (1-0-2) MOACACInternationalComutatoare cu montaj pe usaComutatoare basculante cu motor LATip: MotorizedFuncție: Motorized change-over switches (1-0-2)Număr de poli: 4Curent nominal: 800 A/800 AGrup Catalog: LA MO COComutator motor TOWAR Funcție: Motorized change-over switches (1-0-2) Curent nominal: 800 A/800 A Tip: Motorized Număr de poli: 4 Grup Catalog: LA MO CO
