004667012
Învechit

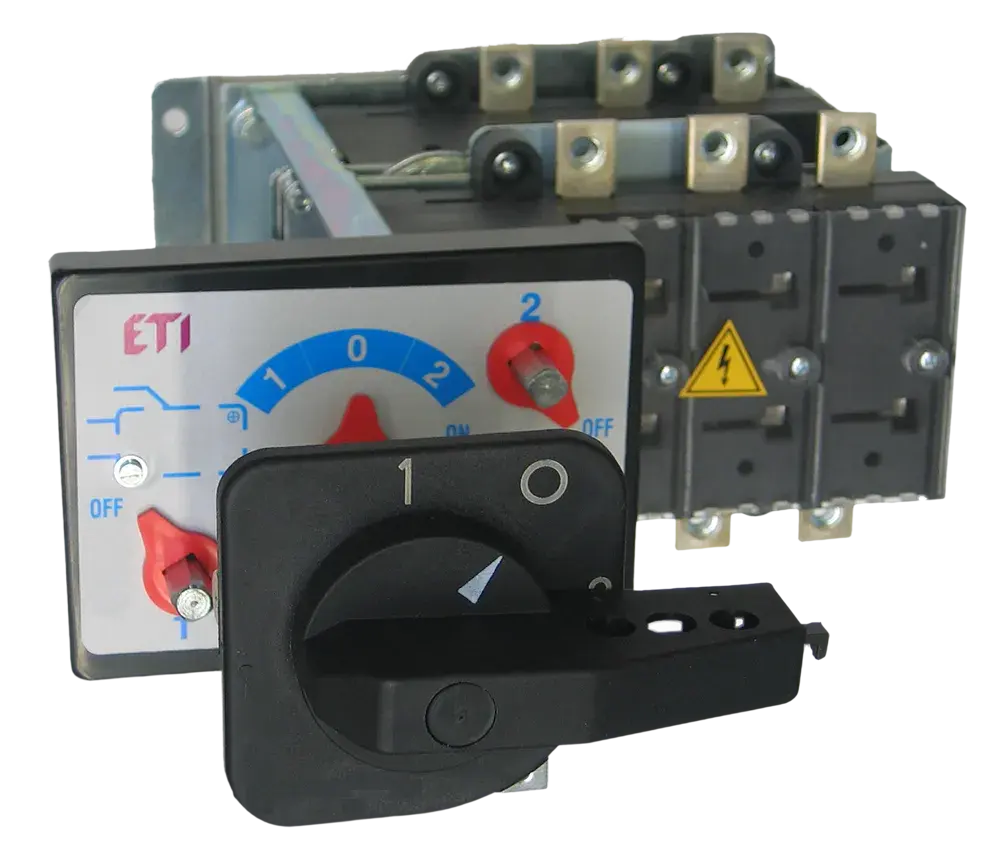

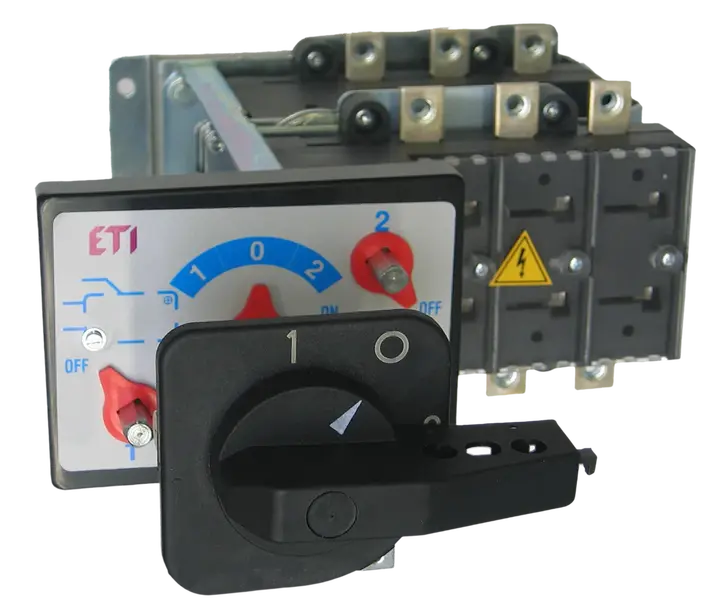

* LA2/D 250A 4p CO Comutator 1-0-2
Disponibil
La cerere
- Cod ETI:
- 004667012
- Funcție:
- Manual change-over compact switches (1-0-2) with door interlock handle
- Curent nominal:
- 250 A
- Tip:
- Door Interlock handle
- Număr de poli:
- 4
- Grup Catalog:
- LA CO
2 Documente
8 Logistică
Produs
- Greutate
- 3 kg
- Stock unit of measure
- pcs
Ambalare transport
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838895475743
- Transport packaging weight
- 5,6 kg
- Transport packaging volume
- 12,6 dm³
- Pallet quantity
- 143 pcs
- Customs tariff
- 85365080
12 ETIM
- Version as maintenance-/service switch
- Da
- Max. rated operation voltage Ue AC
- 1.000 V
- Suitable for floor mounting
- Da
- Rated permanent current Iu
- 250 A
- Type of control element
- Door coupling rotary drive
- Type of electrical connection of main circuit
- Screw connection
- Degree of protection (IP), front side
- IP20
- Number of poles
- 4
- Device construction
- Built-in device fixed built-in technique
- Rated operation power at AC-23, 400 V
- 130 kW
- Suitable for distribution board installation
- Da
- Version as main switch
- Da
Clasificare ETIM – versiunea 9.0
