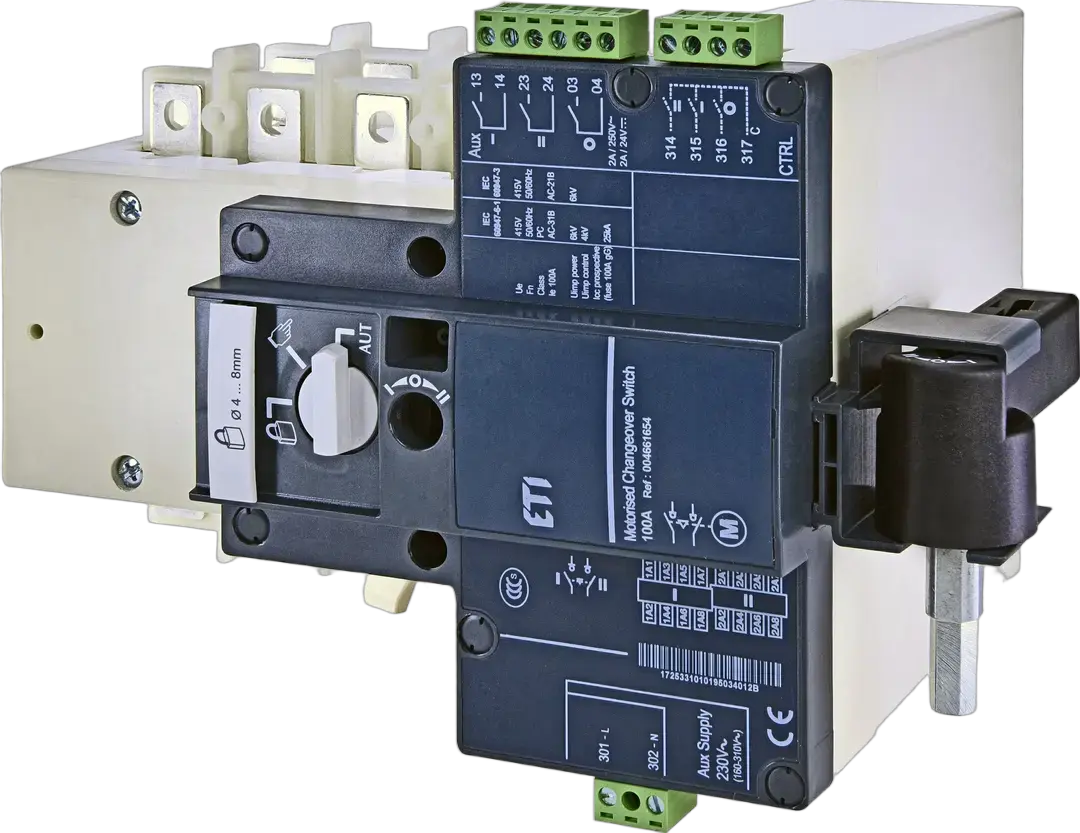

MLBS 100 4P CO 230VAC Comutator motor
- Cod ETI:
- 004661654
- Curent nominal:
- 100 A
- Tip montaj:
- Montare pe placa de bază
- Tip:
- 230VAC
- Număr de poli:
- 4
- Curent termic Ith:
- 100 A
- Curent nominal AC-21 A/B at 415V:
- 100 A
- Tensiune nominala de izolare:
- 800 V
- Tensiunea maxima de operare (V AC) :
- 690 V
- Tensiune de control :
- 230VAC
- Grup Catalog:
- Comutator de sarcină basculant cu motor MLBS..CO
6 Documente
14 Logistică
Produs
- Greutate
- 3,35 kg
- Net width
- 235 mm
- Net height
- 163,4 mm
- Net depth
- 182 mm
- Stock unit of measure
- pcs
Ambalare transport
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838895720201
- Transport packaging weight
- 3,35 kg
- Transport Packaging Dimensions Height
- 175 mm
- Transport Packaging Dimensions Width
- 239 mm
- Transport Packaging Dimensions Depth
- 209 mm
- Transport packaging volume
- 8,741 dm³
- Pallet quantity
- 120 pcs
- Customs tariff
- 85365080
9 ETIM
- Version as maintenance-/service switch
- Da
- Max. rated operation voltage Ue AC
- 415 V
- Suitable for floor mounting
- Da
- Rated permanent current Iu
- 100 A
- Motor drive integrated
- Da
- Type of control element
- Toggle
- Number of poles
- 4
- Device construction
- Complete device in housing
- Version as main switch
- Da
