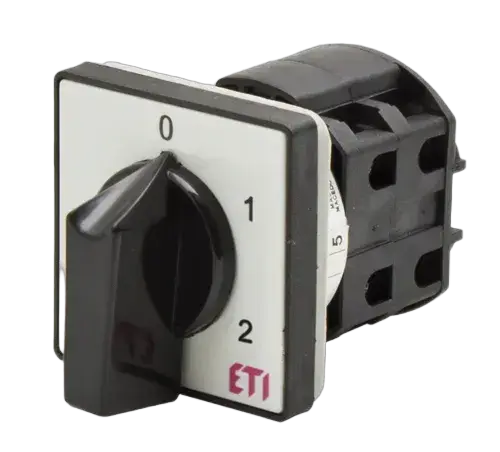

CS 16 135 U Comutator came
- Cod ETI:
- 004773049
- Curent nominal:
- 16 A
- Grup Catalog:
- Comutatoare cu came
- Tip montaj:
- Montare frontală
- Tip:
- 0-1-2
- Număr de poli:
- 3
- Curent termic Ith:
- 16 A
- Curent nominal operational Ie AC-21 at 400V:
- 16 A
- Tensiunea maxima de operare (V AC) :
- 400 V
- Tensiune nominala de izolare:
- 690 V
- Operațiune:
- Multistep (0-1-2) switch with 60° switching angle
6 Documente
21 Logistică
Produs
- Greutate
- 0,125 kg
- Net width
- 50,2 mm
- Net height
- 69,3 mm
- Net depth
- 94,32 mm
- Stock unit of measure
- pcs
Ambalare de bază
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895660125
- Basic packaging weight
- 0,125 kg
- Basic Packaging Dimensions Height
- 124 mm
- Basic Packaging Dimensions Width
- 58 mm
- Basic Packaging Dimensions Depth
- 58 mm
- Basic packaging volume
- 0,417 dm³
Ambalare transport
- Transport packaging quantity
- 84 pcs
- EAN code for a transport packaging
- 3838895660132
- Transport packaging weight
- 11,5 kg
- Transport Packaging Dimensions Height
- 240 mm
- Transport Packaging Dimensions Width
- 480 mm
- Transport Packaging Dimensions Depth
- 400 mm
- Transport packaging volume
- 46,08 dm³
- Pallet quantity
- 1.764 pcs
- Customs tariff
- 85363030
9 ETIM
- Model
- Level switch
- Rated permanent current Iu
- 16 A
- Type of control element
- Turn button
- Suitable for front mounting
- Da
- Type of electrical connection of main circuit
- Screw connection
- Number of poles
- 3
- With zero (off) position
- Da
- Rated operation power at AC-3, 400 V
- 7,5 kW
- Suitable for distribution board installation
- Da
