002440552

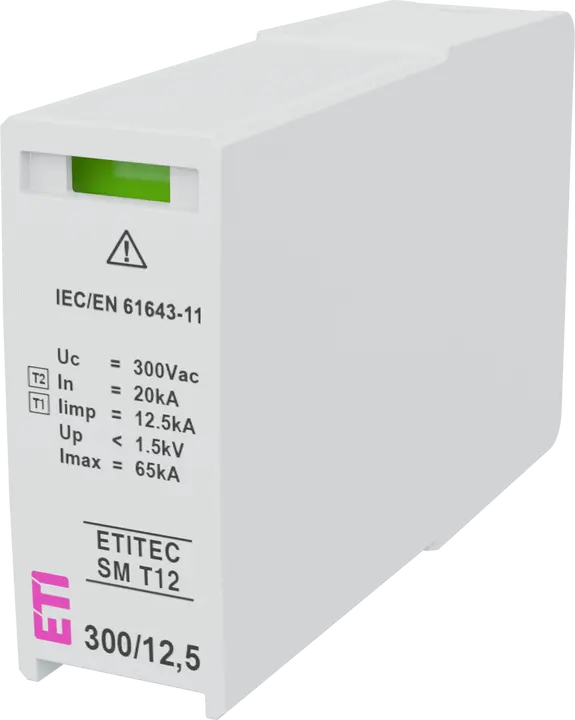

Imagine MOD.ETITEC SM T12 300/12,5

MOD.ETITEC SM T12 300/12,5 Protecție supratensiuni

Cod ETI:: 002440552
Tensiune nominală AC:: 230 V
Sistem rețea:: TN/TT
Grup Catalog:: ETITEC SM
Instalare:: Home and residental building protection
Grad de protecție IP:: IP20
Curent de scurgere :: No
Tehnologie aplicata :: MOV, GDT
Adancime incorporata:: 73,5 mm
Tip:: T1, T2
Tensiune maximă de funcționare continuă în AC Uc:: 300 V
Funcție:: SPD Module
Utilizare cu:: ETITEC SM T12
Tip curent:: AC
I imp(10/350) Curent de Impuls:: 12,5 kA
In (8/20) :: 20 kA
Imax(8/20):: 65 kA

Produs

Greutate: 0,13 kg
Stock unit of measure: pcs

Ambalare de bază

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895841913
Basic packaging weight: 0,116 kg
Basic Packaging Dimensions Height: 99 mm
Basic Packaging Dimensions Width: 24 mm
Basic Packaging Dimensions Depth: 50 mm
Basic packaging volume: 0,119 dm³

Ambalare transport

Transport packaging quantity: 28 pcs
EAN code for a transport packaging: 3838895841920
Transport packaging weight: 3,329 kg
Transport Packaging Dimensions Height: 109 mm
Transport Packaging Dimensions Width: 352 mm
Transport Packaging Dimensions Depth: 115 mm
Transport packaging volume: 4,412 dm³
Pallet quantity: 5.880 pcs
Customs tariff: 85363090

System configuration TN-C: Da
Nominal voltage AC: 230 V
Test class: Type 1 + 2
Degree of protection (IP): IP20
Mounting method: On basic element
Construction size: 1 modular spacing
Lightning impulse current (10/350 µs): 12,5 kA
Specific energy (W/R): 39 kJ/Ohm
System configuration TN-S: Da
Voltage protection level: 1,5 kV
System configuration TN: Da
Number of poles: 1
System configuration TT: Da
Signalling at the device: Optical
Max. continuous voltage AC: 300 V

Clasificare ETIM – versiunea 9.0
