002472051

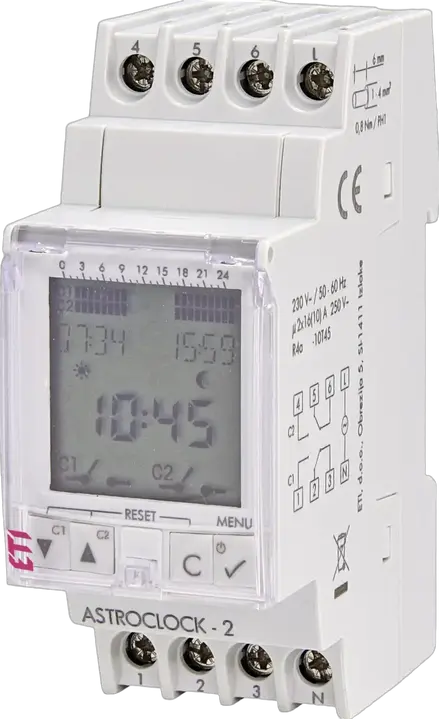

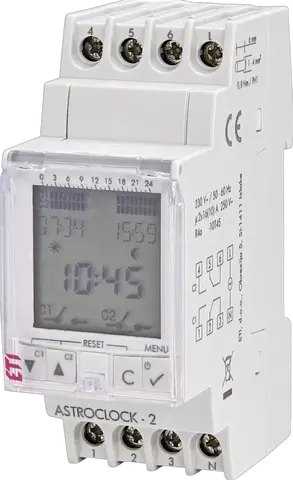

ASTROCLOCK-2 Releu de timp-digital

Name: ASTROCLOCK-2
Brand: ETI Elektroelement d.o.o.
SKU: 002472051

Disponibil în ore 24

Stoc produse 1

Preț incl. TVA 614,86 LEI

Cod ETI:: 002472051
Înălțime:: 90 mm
Lățime:: 355 mm
Categorie:: Astronomical time switch ASTROCLOCK 2
Grup Catalog:: Releu crepuscular & Releu astronomic de timp
Subgrup Catalog:: Astronomical time switch
Tip montaj:: TH 35
Grad de protecție IP:: IP20
Interval de timp :: SUNRISE, SUNSET, FIXED TIME: ON/OFF, REDUC.
Tip:: Astronomical time switch ASTROCLOCK 2
Tipuri de contacte :: 1xCO
Tipul voltajului :: AC
Numarul de contacte:: 2
Număr contacte CO:: 2
Funcție:: Time relay
Capacitatea maxima de incarcare AC1:: 4.000 VA
Tensiunea de alimentare :: 230 V
Curent nominal:: 16 A

Produs

Greutate: 0,166 kg
Net width: 35 mm
Net height: 91,2 mm
Net depth: 63,32 mm
Stock unit of measure: pcs

Ambalare de bază

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895717874
Basic packaging weight: 0,166 kg
Basic Packaging Dimensions Height: 95 mm
Basic Packaging Dimensions Width: 42 mm
Basic Packaging Dimensions Depth: 72 mm
Basic packaging volume: 0,287 dm³

Ambalare transport

Transport packaging quantity: 10 pcs
EAN code for a transport packaging: 3838895717881
Transport packaging weight: 1,68 kg
Transport Packaging Dimensions Height: 210 mm
Transport Packaging Dimensions Width: 150 mm
Transport Packaging Dimensions Depth: 160 mm
Transport packaging volume: 5,04 dm³
Pallet quantity: 1.500 pcs
Customs tariff: 85364900

Max. switching power LED: 90 W
Number of contacts: 2
Quartz controlled: Da
Width: 35,5 mm
Suitable for manual operation: Da
Number of memory locations: 40
Weekly program: Da
Astro program: Da
Number of channels: 2
Degree of protection (IP): IP20
Contact type: Change-over contact (NO/NC)
Mounting method: DIN rail
Automatic switching summer-/winter time: Da
Accuracy per day: 1 s
Holiday program: Da
Voltage type (supply voltage): AC
Autonomy in hours: 48
Shortest switching time channel 2: 0,02 min
Hour meter: Da
24 h program: Da
Nominal switching current at 250 V AC: 16 A
Depth: 65 mm
Text guidance in display: Da
Cycle program: Da
Shortest switching time channel 1: 0,02 min
Potential free switch contact: Da
Height: 90 mm
Width in number of modular spacings: 2
60 min program: Da
Frequency supply voltage(Min): 50 Hz
Supply voltage(Min): 230 V
Frequency supply voltage(Max): 50 Hz
Supply voltage(Max): 230 V

Clasificare ETIM – versiunea 9.0
