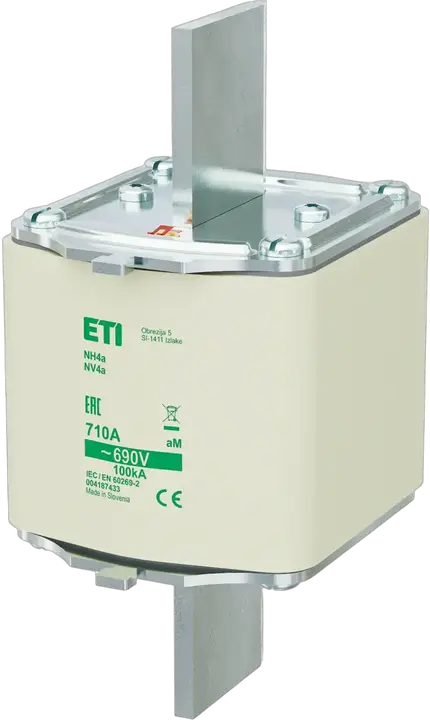

NH4a aM 710A/690V Element fuzibil

Disponibil La cerere

Preț incl. TVA 627,32 LEI

Cod ETI:: 004187433
Tip:: NH
Mărime:: NH4a
Curent nominal:: 710 A
Caracteristici:: aM
Indicator:: Indicator principal al siguranței
Tensiune nominală AC:: 690 V
Capacitatea de rupere AC:: 100 kA
Putere disipată:: 79 W
Standarde:: VDE 0636-2011
Aplicație:: For relays, contactors and motors protection in case of short-circuit

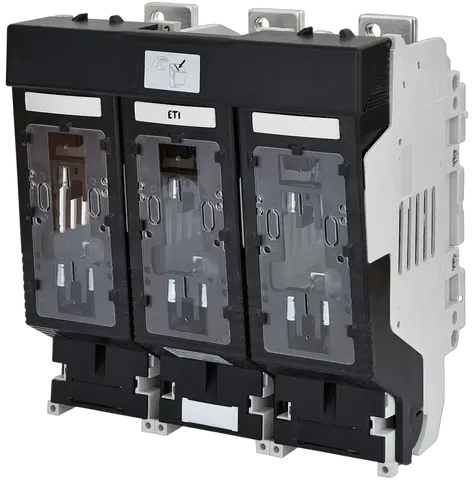

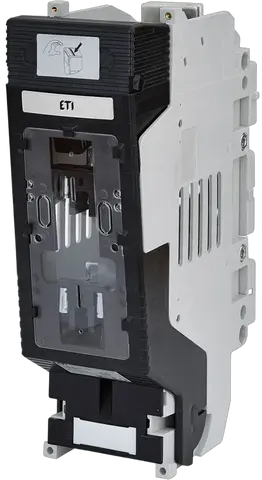

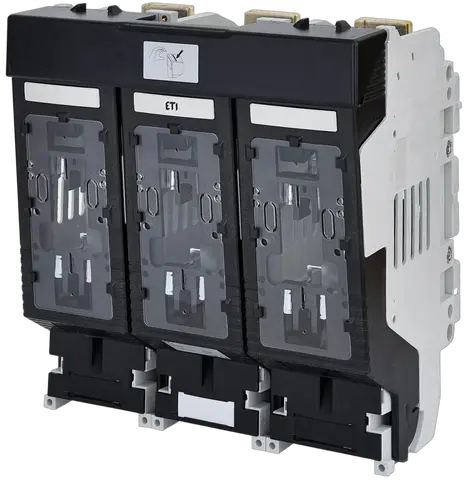

Accesorii

Produs

Greutate: 2.810 g
Net width: 95 mm
Net height: 200,1 mm
Net depth: 121 mm
Stock unit of measure: pcs

Ambalare de bază

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895392095
Basic packaging weight: 2,909 kg
Basic Packaging Dimensions Height: 0,1 m
Basic Packaging Dimensions Width: 0,212 m
Basic Packaging Dimensions Depth: 0,152 m
Basic packaging volume: 0,003 m³

Ambalare transport

Transport packaging quantity: 4 pcs
EAN code for a transport packaging: 3838895715597
Transport packaging weight: 11,958 kg
Transport Packaging Dimensions Height: 0,255 m
Transport Packaging Dimensions Width: 0,365 m
Transport Packaging Dimensions Depth: 0,25 m
Transport packaging volume: 0,023 m³
Pallet quantity: 144 pcs
Customs tariff: 85361090

Rated switching capacity AC: 100 kA
Voltage type: AC
Fuse construction type according to IEC 60269: NH4a
Rated voltage AC: 690
Power loss at rated current: 79 W
Type of fuse status indicator: Top fuse status indicator
Rated current: 710 A
Utilization category: aM (switchgear protection)

Clasificare ETIM – versiunea 9.0
