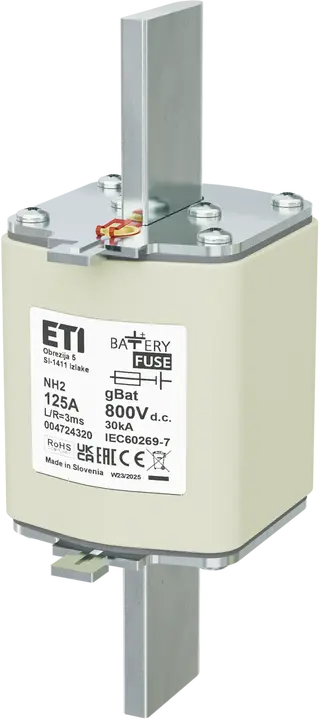

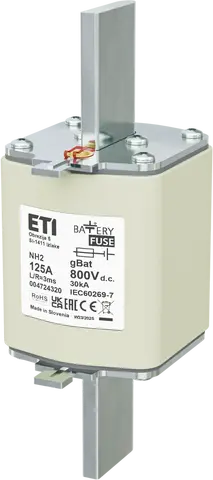

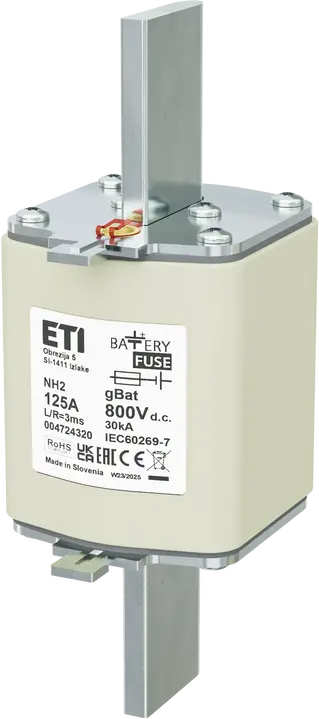

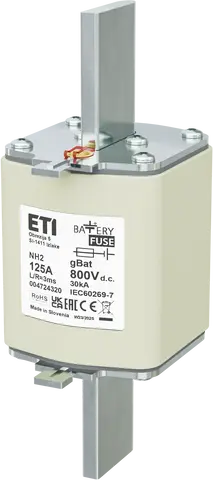

NH2 gBat 125A/800V DC Element fuzibil

Cod ETI:: 004724320
Tip:: NH
Mărime:: NH2
Curent nominal:: 125 A
Caracteristici:: gBat
Indicator:: Indicator principal al siguranței
Tensiune nominală DC:: 800 V
Capacitatea de rupere DC:: 30 kA
L/R:: 3 ms
Disiparea puterii (0,7xIn):: 9 W
Putere disipată:: 20 W
Curentul de pre-arc (A2s):: 2.200
Operare Joule integrală (A2s):: 13.046
Standarde:: IEC 60269-7
Aplicație:: Battery protection

Accesorii

Produs

EAN code for a single product: 3838895760306
Greutate: 700 g
Net width: 55 mm
Net height: 151 mm
Net depth: 71,5 mm
Stock unit of measure: pcs

Ambalare de bază

Basic packaging quantity: 3 pcs
EAN code for a basic packaging: 3838895707875
Basic packaging weight: 2,176 kg
Basic Packaging Dimensions Height: 0,079 m
Basic Packaging Dimensions Width: 0,17 m
Basic Packaging Dimensions Depth: 0,17 m
Basic packaging volume: 0,002 m³

Ambalare transport

Transport packaging quantity: 24 pcs
EAN code for a transport packaging: 3838895707882
Transport packaging weight: 17,954 kg
Transport Packaging Dimensions Height: 0,23 m
Transport Packaging Dimensions Width: 0,38 m
Transport Packaging Dimensions Depth: 0,38 m
Transport packaging volume: 0,033 m³
Pallet quantity: 576 pcs
Customs tariff: 85361090

Voltage type: DC
Fuse construction type according to IEC 60269: NH2
Power loss at rated current: 20 W
Rated switching capacity DC: 30 kA
Type of fuse status indicator: Top fuse status indicator
Rated current: 125 A
Rated voltage DC: 800
Utilization category: Other
