004110342

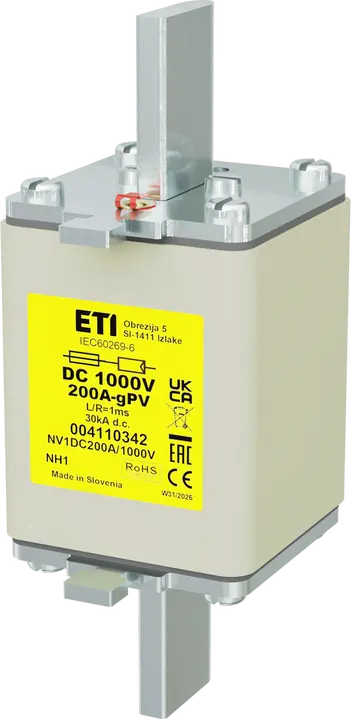

NH1 gPV 200A/1000V DC Element fuzibil

Disponibil La cerere

Preț incl. TVA 324,59 LEI

Cod ETI:: 004110342
Tip:: NH
Mărime:: NH1
Curent nominal:: 200 A
Caracteristici:: gPV
Indicator:: Indicator principal al siguranței
Tensiune nominală DC:: 1000 V
Capacitatea de rupere DC:: 30 kA
L/R:: 1 ms
Disiparea puterii (0,7xIn):: 11 W
Putere disipată:: 27 W
Curentul de pre-arc (A2s):: 4.400
Operare Joule integrală (A2s):: 29.000
Standarde:: IEC 60269-6
Aplicație:: Fuse link for DC application

Accesorii

Produs

Net depth: 63 mm
Greutate: 640 g
Net width: 51 mm
Net height: 135 mm
Stock unit of measure: pcs
EAN code for a single product: 3838895606031

Ambalare de bază

EAN code for a basic packaging: 3838895606048
Basic packaging weight: 1,996 kg
Basic Packaging Dimensions Depth: 0,17 m
Basic Packaging Dimensions Height: 0,079 m
Basic packaging volume: 0,002 m³
Basic Packaging Dimensions Width: 0,17 m
Basic packaging quantity: 3 pcs

Ambalare transport

Transport packaging weight: 16,514 kg
Transport packaging volume: 0,033 m³
Transport packaging quantity: 24 pcs
Customs tariff: 85361090
Transport Packaging Dimensions Height: 0,23 m
Transport Packaging Dimensions Width: 0,38 m
Transport Packaging Dimensions Depth: 0,38 m
EAN code for a transport packaging: 3838895606055
Pallet quantity: 576 pcs

Voltage type: DC
Fuse construction type according to IEC 60269: NH1
Power loss at rated current: 27 W
Rated switching capacity DC: 30 kA
Type of fuse status indicator: Top fuse status indicator
Rated current: 200 A
Rated voltage DC: 1.000
Utilization category: gPV (photovoltaic protection)

Clasificare ETIM – versiunea 9.0

Eplan
