002652042

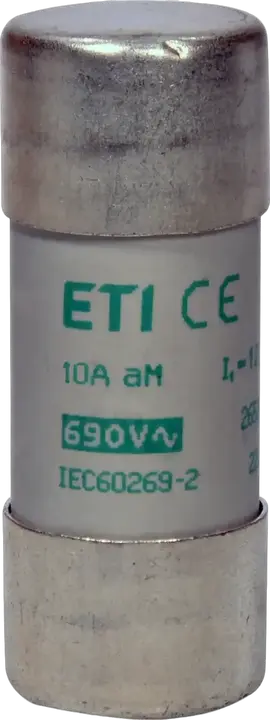

CH22x58 aM 10A/690V Element fuzibil

Disponibil La cerere

Preț incl. TVA 22,80 LEI

Cod ETI:: 002652042
Tip:: CH
Tip:: CH
Mărime:: 22x58
Curent nominal:: 10 A
Tensiune nominală AC:: 690 V
Caracteristici:: aM
Capacitatea de rupere AC:: 120 kA
Aplicație:: For relays, contactors and motors protection in case of short-circuit
Putere disipată:: 0,75 W
Standarde:: IEC 60269-1, IEC 60269-2

Accesorii

Produs

EAN code for a single product: 3838400115584
Greutate: 0,054 kg
Net width: 22,2 mm
Net height: 58 mm
Net depth: 22,2 mm
Stock unit of measure: pcs

Ambalare de bază

Basic packaging quantity: 10 pcs
EAN code for a basic packaging: 3838400096197
Basic packaging weight: 0,559 kg
Basic Packaging Dimensions Height: 23 mm
Basic Packaging Dimensions Width: 119 mm
Basic Packaging Dimensions Depth: 117 mm
Basic packaging volume: 0,32 dm³

Ambalare transport

Transport packaging quantity: 250 pcs
EAN code for a transport packaging: 3838400096203
Transport packaging weight: 14,415 kg
Transport Packaging Dimensions Height: 300 mm
Transport Packaging Dimensions Width: 300 mm
Transport Packaging Dimensions Depth: 400 mm
Transport packaging volume: 36 dm³
Pallet quantity: 6.000 pcs
Customs tariff: 85361050

Voltage type: AC
Size: 22x58 mm
Breaking capacity: 120 kA
Rated voltage: 690 V
Rated current: 10 A
Utilization category: aM (switchgear protection)
Rated operating frequency(Min): 50 Hz
Rated operating frequency(Max): 50 Hz

Clasificare ETIM – versiunea 9.0
