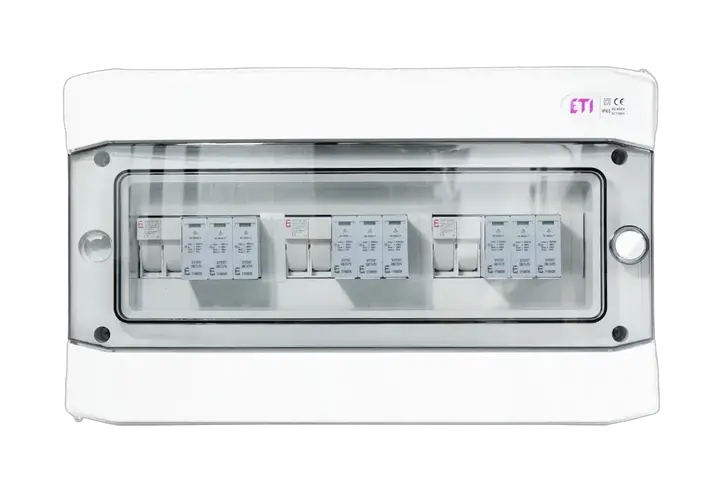

Imagine RFVE1100/18-DC3/3-16-EMT2

RFVE1100/18-DC3/3-16-EMT2 Cutie distribuție asamblată

Cod ETI:: 001105480
Număr de intrări:: 3
Tensiune nominală DC:: 1100 V
Curent nominal:: 16 A

Catalog date tehnice

Produs

Greutate: 3,55 kg
Stock unit of measure: pcs

Ambalare transport

Transport packaging quantity: 1 pcs
EAN code for a transport packaging: 3838400105325
Transport packaging weight: 3,5 kg
Transport Packaging Dimensions Height: 300 mm
Transport Packaging Dimensions Width: 300 mm
Transport Packaging Dimensions Depth: 200 mm
Transport packaging volume: 18 dm³
Pallet quantity: 40 pcs
Customs tariff: 85371098

Width: 428 mm
For fuse size: 10x38 mm
Max. input voltage DC: 1.100 V
Degree of protection (IP): IP65
Impact strength: IK08
Fuse size input: 16 A
Fuse type: gPV (photovoltaic protection)
Type of inlet: Gland nut
Number of string inputs: 3
Depth: 144 mm
Max. output current: 16 A
Category type 2: Da
Colour: Grey
With grounding connection: Da
Max. input current per string: 16 A
String protection: 2-pole
Material: Plastic
Height: 259 mm
Operating temperature(Min): -15 °C
Operating temperature(Max): 40 °C

Clasificare ETIM – versiunea 9.0

001105480 Cutie distribuție asamblată RFVE1100/18-DC3/3-16-EMT2 Green protect PV distribution boards 3, 4, 5, 6 inputs 18 modules 1100V d.c.16 A d.c.International Solutions Cutii de distribuție tip PV Număr de intrări: 3 Tensiune nominală DC: 1100 V/1100 V Curent nominal: 16 A/16 A Cutie distribuție asamblată TOWAR Număr de intrări: 3 Tensiune nominală DC: 1100 V/1100 V Curent nominal: 16 A/16 A
