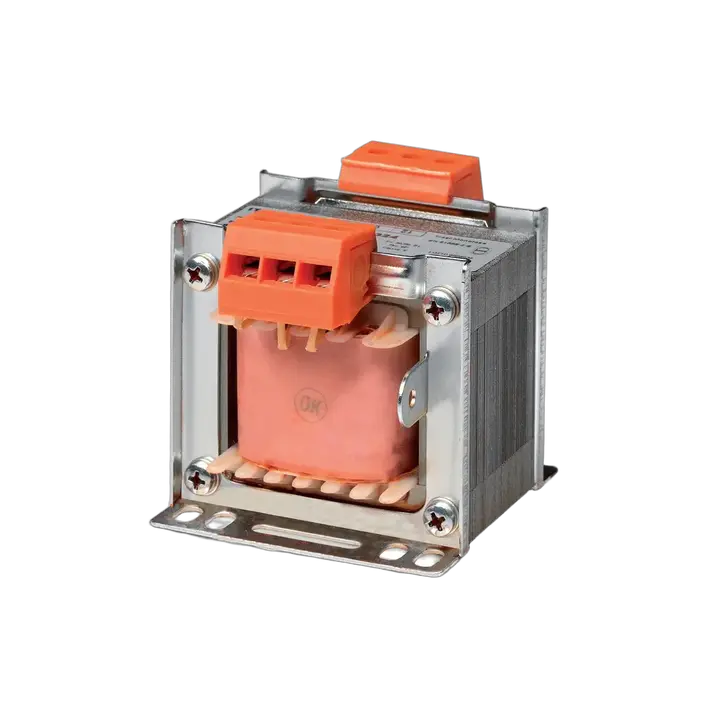

TR EU 1f 115-0-115V 100VA Transformator

Disponibil La cerere

Preț incl. TVA 300,15 LEI

Cod ETI:: 003801402
Grup Catalog:: Transformatoare monofazate în carcasă cu montaj pe placă
Grad de protecție IP:: IP00
Număr de faze:: Simplu
Putere:: 100 VA
Tensiune primar (Up):: 230/400 V
Tensiune secundar (Us):: 0-230 V

Produs

Greutate: 1,88 kg
Net width: 85 mm
Net height: 85 mm
Net depth: 93 mm
Stock unit of measure: pcs

Ambalare transport

Transport packaging quantity: 1 pcs
EAN code for a transport packaging: 3838895478911
Transport packaging weight: 1,88 kg
Transport Packaging Dimensions Height: 85 mm
Transport Packaging Dimensions Width: 85 mm
Transport Packaging Dimensions Depth: 93 mm
Transport packaging volume: 0,672 dm³
Pallet quantity: 1.488 pcs
Customs tariff: 85043180

Degree of protection (IP): IP00
Rated apparent power: 100 VA
Built as isolating transformer: Da
Type of insulation material according to IEC 85: F
Secondary voltage 3(Min): 230 V
Primary voltage 1(Min): 195,5 V
Secondary voltage 2(Min): 115 V
Secondary voltage 1(Min): 115 V
Primary voltage 2(Min): 340 V
Secondary voltage 3(Max): 230 V
Primary voltage 2(Max): 460 V
Secondary voltage 1(Max): 115 V
Secondary voltage 2(Max): 115 V
Primary voltage 1(Max): 264,5 V

Clasificare ETIM – versiunea 9.0

Eplan

Software-ul este furnizat ca atare, fără garanții. Autorul nu este obligat să ofere suport, service, corecții sau actualizări pentru programele software gratuite sau driverele.

003801402 Transformator TR EU 1f 115-0-115V 100VA ETITRAFO Single phase safety transformer IP00 class F EURO EURO International Transformatoare și dispozitive de alimentare Transformatoare monofazate de siguranță clasa de izolare IP00 Tensiune primar (Up) (V): 230 V/400 V Tensiune secundar (Us) (V): 0 V-230 V Grad de protecție IP: IP00 Putere (VA): 100 VA Număr de faze: Single Grup Catalog: Transformatoare monofazate în carcasă cu montaj pe placă Transformator Grup Catalog: Transformatoare monofazate în carcasă cu montaj pe placă Grad de protecție IP: IP00 Număr de faze: Single Putere (VA): 100 VA Tensiune primar (Up) (V): 230 V/400 V Tensiune secundar (Us) (V): 0 V-230 V
