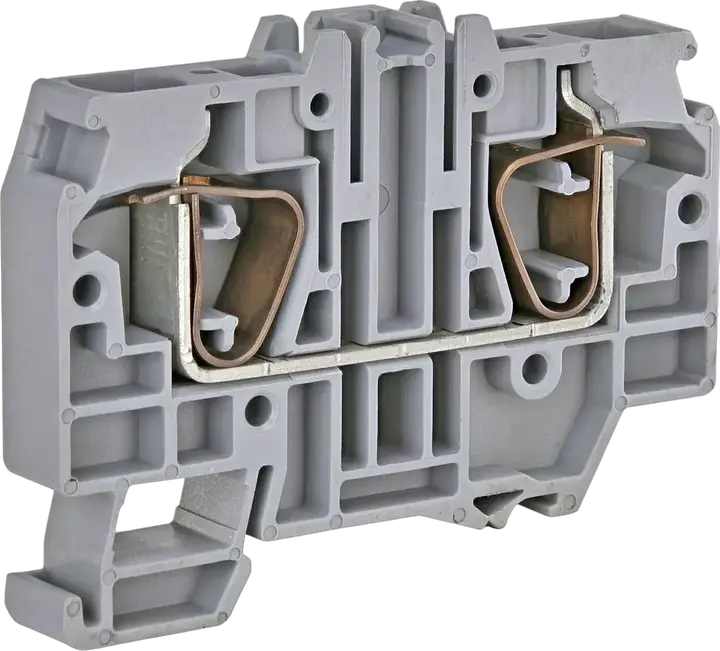

ESP-HMM.10 Bloc terminal

Name: ESP-HMM.10
Brand: ETI Elektroelement d.o.o.
SKU: 003903134

Disponibil în ore 24

Stoc produse 60

Preț incl. TVA 10,32 LEI

Cod ETI:: 003903134
Tensiune nominală AC:: 1000 V
Tensiune nominală DC:: 1000 V
Grup Catalog:: Clapete terminale de blocare a arcului ES
Tip montaj:: TH 35
Tip:: ES Spring Clamp Terminal Blocks
Nivel:: Singura
Culoare:: Grei
Secțiune transversală nominală:: 10 mm²
Tensiunea nominala de rezistenta Uimp:: 12 kV
Curent maxim cu sectiunea transversala:: 57 mm²
Conexiune incrucisata :: Yes
Sectiune finala :: Yes

Accesorii

Produs

EAN code for a single product: 3838895861959
Greutate: 25,2 g
Net width: 10 mm
Net height: 71 mm
Net depth: 52,5 mm
Stock unit of measure: pcs

Ambalare transport

Transport packaging quantity: 30 pcs
EAN code for a transport packaging: 3838895789284
Transport packaging weight: 0,84 kg
Transport Packaging Dimensions Height: 55 mm
Transport Packaging Dimensions Width: 240 mm
Transport Packaging Dimensions Depth: 150 mm
Transport packaging volume: 1,98 dm³
Pallet quantity: 13.500 pcs
Customs tariff: 85369010

Explosion-tested version 'Ex e': Da
Width: 10 mm
Material insulation body: Thermoplastic
Rated current In: 57 A
Mounting method: DIN rail (top hat rail) 35 mm
Number of levels: 1
Type of electrical connection 1: Spring clamp connection
Number of clamp positions per level: 2
Closing plate required: Da
Type of electrical connection 2: Spring clamp connection
Rated voltage: 1.000 V
Colour: Grey
Height: 53 mm
Inflammability class of insulation material according to with UL94: V0
Connectable conductor cross section solid-core(Min): 1,5 mm²
Connectable conductor cross section multi-wired(Min): 1,5 mm²
Connectable conductor cross section fine-strand with cable end sleeve(Min): 1,5 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 1,5 mm²
Operating temperature(Min): -40 °C
Connectable conductor cross section solid-core(Max): 16 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 16 mm²
Connectable conductor cross section multi-wired(Max): 16 mm²
Operating temperature(Max): 100 °C
Connectable conductor cross section fine-strand with cable end sleeve(Max): 10 mm²

Clasificare ETIM – versiunea 9.0
