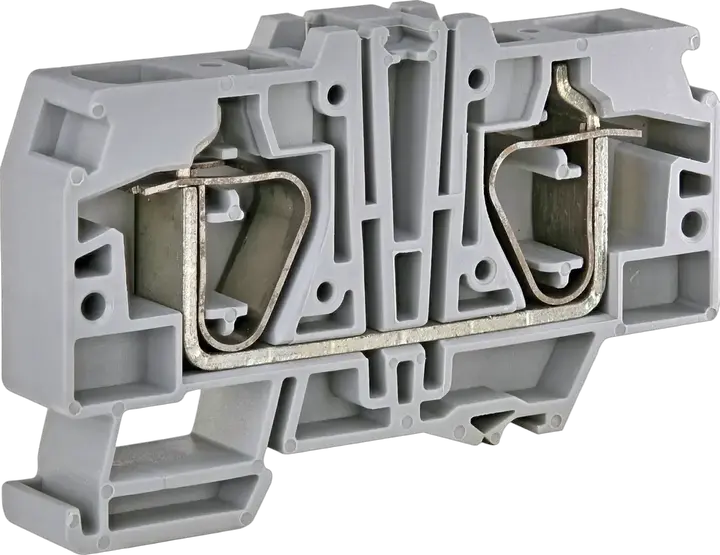

ESP-HMR.16 Bloc terminal

Cod ETI:: 003903178
Tensiune nominală AC:: 800 V
Tensiune nominală DC:: 800 V
Grup Catalog:: Clapete terminale de blocare a arcului ES
Tip montaj:: TH 35
Tip:: ES Spring Clamp Terminal Blocks
Nivel:: Dublu
Culoare:: Grei
Secțiune transversală nominală:: 16 mm²
Tensiunea nominala de rezistenta Uimp:: 12 kV
Curent maxim cu sectiunea transversala:: 76 mm²
Conexiune incrucisata :: Yes
Sectiune finala :: Yes

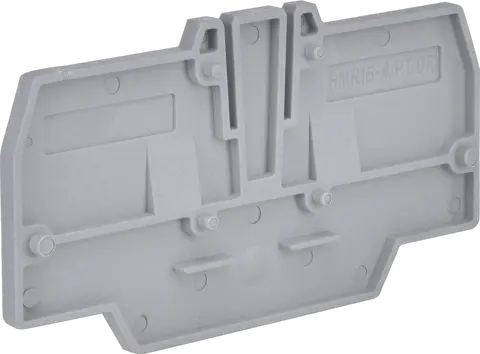

Accesorii

Produs

EAN code for a single product: 3838895862451
Greutate: 43 g
Net width: 12,8 mm
Net height: 80 mm
Net depth: 50 mm
Stock unit of measure: pcs

Ambalare transport

Transport packaging quantity: 15 pcs
EAN code for a transport packaging: 3838895789727
Transport packaging weight: 0,66 kg
Transport Packaging Dimensions Height: 85 mm
Transport Packaging Dimensions Width: 160 mm
Transport Packaging Dimensions Depth: 100 mm
Transport packaging volume: 1,36 dm³
Pallet quantity: 9.900 pcs
Customs tariff: 85369010

Explosion-tested version 'Ex e': Da
Width: 12,8 mm
Material insulation body: Thermoplastic
Rated current In: 76 A
Mounting method: DIN rail (top hat rail) 35 mm
Number of levels: 1
Type of electrical connection 1: Spring clamp connection
Number of clamp positions per level: 2
Closing plate required: Da
Type of electrical connection 2: Spring clamp connection
Rated voltage: 800 V
Colour: Grey
Height: 50 mm
Inflammability class of insulation material according to with UL94: V0
Connectable conductor cross section solid-core(Min): 1,5 mm²
Connectable conductor cross section multi-wired(Min): 1,5 mm²
Connectable conductor cross section fine-strand with cable end sleeve(Min): 1,5 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 1,5 mm²
Operating temperature(Min): -40 °C
Connectable conductor cross section solid-core(Max): 25 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 25 mm²
Connectable conductor cross section multi-wired(Max): 25 mm²
Operating temperature(Max): 100 °C
Connectable conductor cross section fine-strand with cable end sleeve(Max): 16 mm²

Clasificare ETIM – versiunea 9.0
