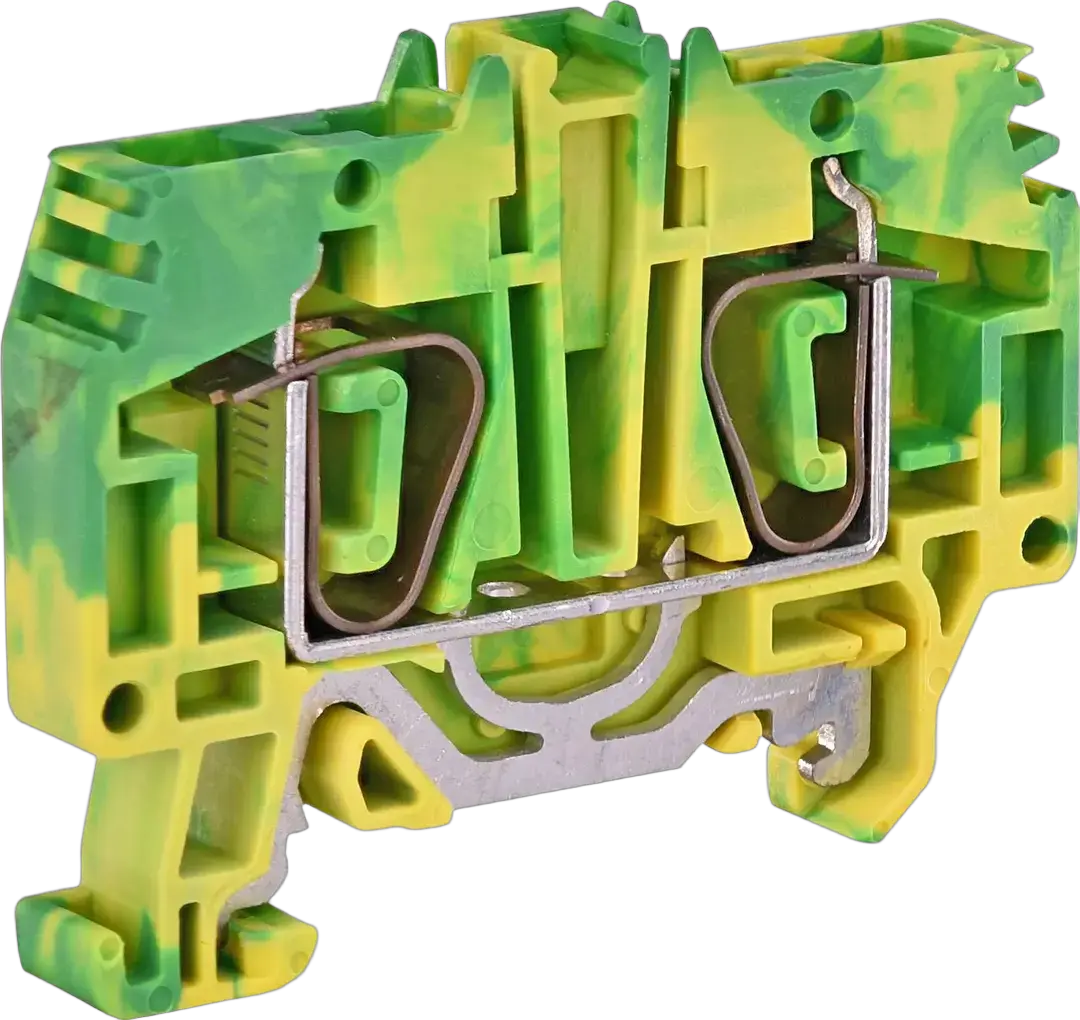

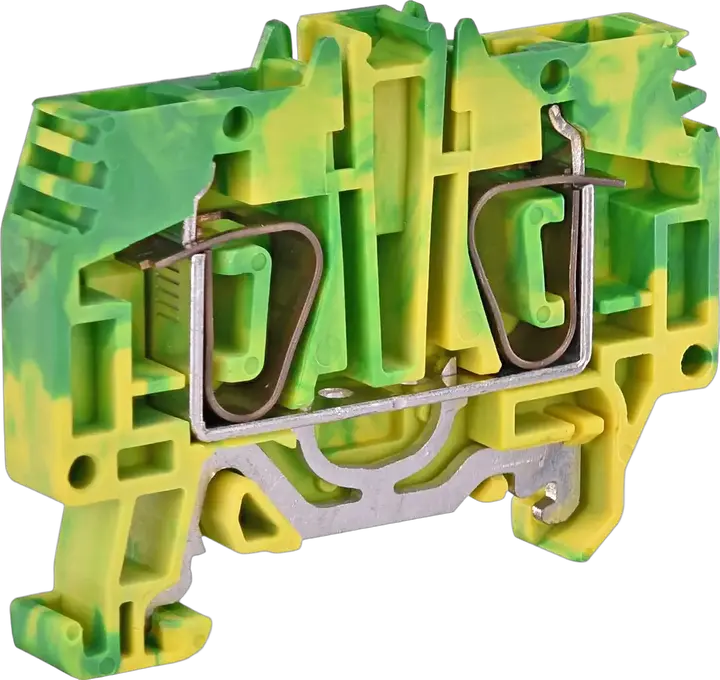

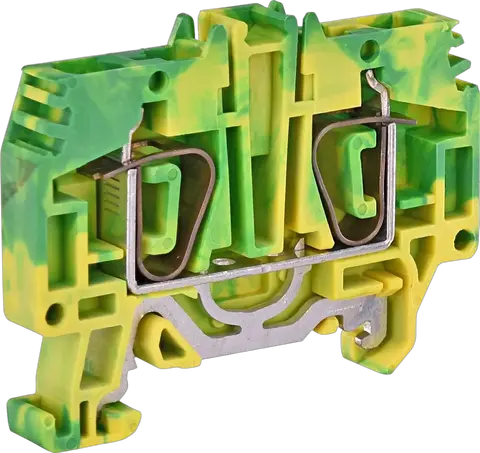

ESP-HTE.6 Conexiuni de legare la pământ

Cod ETI:: 003903193
Grup Catalog:: Clapete terminale de blocare a arcului ES
Tip montaj:: TH 35
Tip:: ES Spring Clamp Terminal Blocks
Nivel:: Singura
Culoare:: Galben, Verde
Secțiune transversală nominală:: 6 mm²
Tensiunea nominala de rezistenta Uimp:: 8 kV
Sectiunea transversala a conductorului:: 2-10 mm²
Conexiune incrucisata :: No
Sectiune finala :: Yes

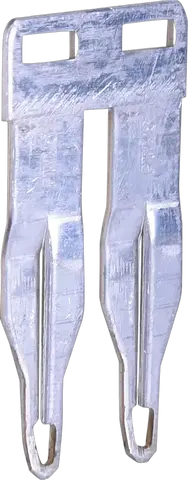

Accesorii

Produs

EAN code for a single product: 3838895862666
Greutate: 20 g
Net width: 8,2 mm
Net height: 62 mm
Net depth: 47,5 mm
Stock unit of measure: pcs

Ambalare transport

Transport packaging quantity: 30 pcs
EAN code for a transport packaging: 3838895789871
Transport packaging weight: 0,609 kg
Transport Packaging Dimensions Height: 85 mm
Transport Packaging Dimensions Width: 160 mm
Transport Packaging Dimensions Depth: 100 mm
Transport packaging volume: 1,36 dm³
Pallet quantity: 19.800 pcs
Customs tariff: 85369010

Width: 8,2 mm
Material insulation body: Thermoplastic
Mounting method: DIN rail (top hat rail) 35 mm
Number of levels: 1
Type of electrical connection 1: Spring clamp connection
Number of clamp positions per level: 2
Closing plate required: Da
Type of electrical connection 2: Spring clamp connection
Colour: Green/yellow
Height: 44 mm
Inflammability class of insulation material according to with UL94: V0
Connectable conductor cross section solid-core(Min): 0,2 mm²
Connectable conductor cross section multi-wired(Min): 0,2 mm²
Connectable conductor cross section fine-strand with cable end sleeve(Min): 0,2 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 0,2 mm²
Operating temperature(Min): -40 °C
Connectable conductor cross section solid-core(Max): 10 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 10 mm²
Connectable conductor cross section multi-wired(Max): 10 mm²
Operating temperature(Max): 100 °C
Connectable conductor cross section fine-strand with cable end sleeve(Max): 6 mm²

Clasificare ETIM – versiunea 9.0
