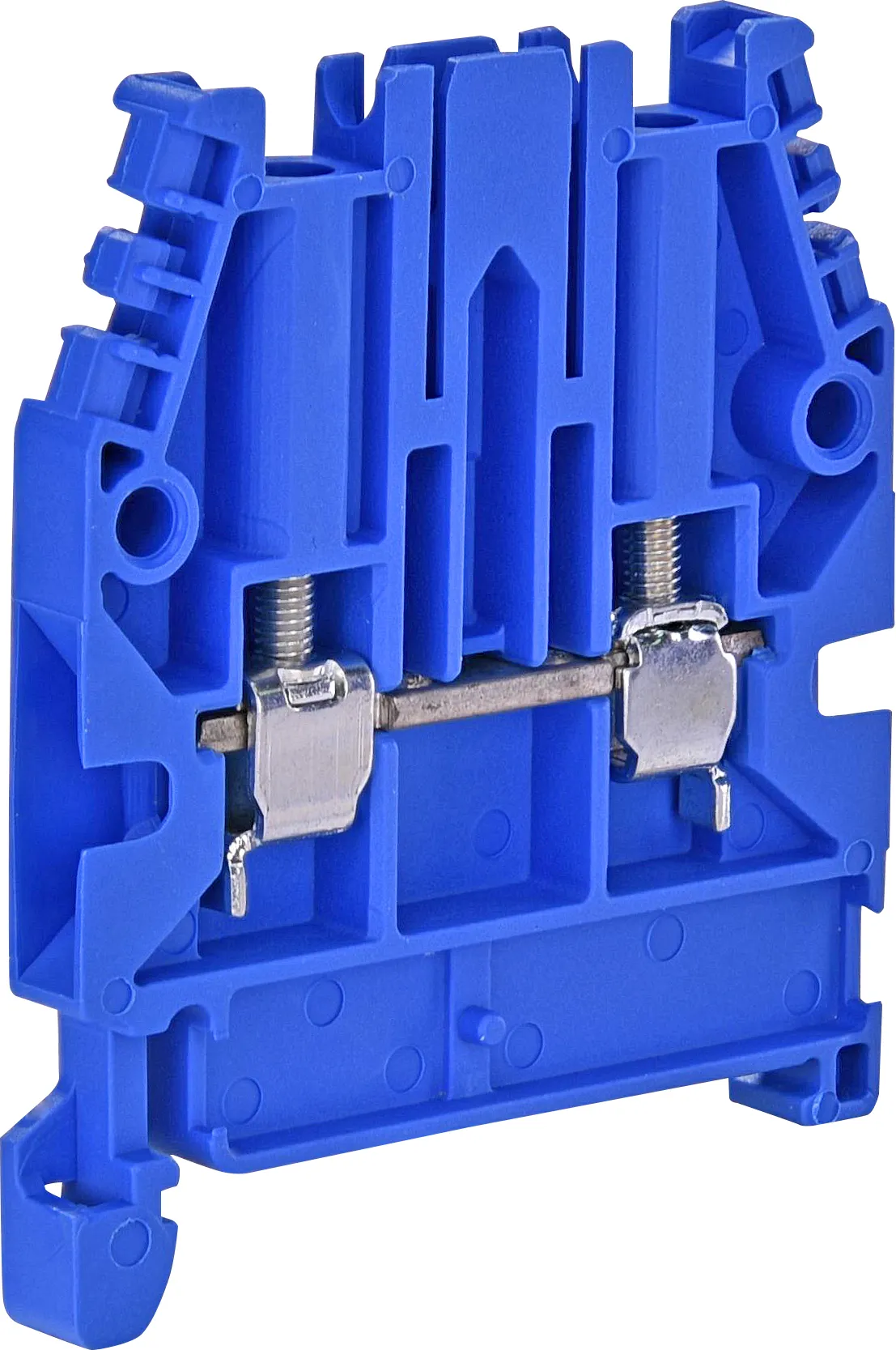

Terminal neutru ESC-CBC.2B 003903044
Preț cu TVA
2.14 Lei
Stoc
691
Disponibil
Specificatii
- Cod ETI:
- 003903044
- Descriere:
- ESC-CBC.2B
- Denumire clasă:
- Terminal neutru
- Nivel:
- Singura
- Tip:
- Blocuri terminale tip ES
- Tensiunea nominala de rezistenta Uimp (kV):
- 12kV
- Culoare:
- Albastru
- Secțiune transversală nominală:
- 2.5mm²
- Curent maxim cu sectiunea transversala (mm2) :
- 24mm²
- Curent maxim cu sectiunea maxima transversala (mm2) :
- 37mm²
- Sectiunea transversala a conductorului (mm2) :
- 0.2mm²-4mm²
- Conexiune incrucisata :
- YES
- Sectiune finala :
- YES
Documente
Date logistica
Produse
- Cod produs EAN
- 3838895860914
- Greutatea produsului
- 8.2 g
- Tarif vamal
- 85369010
- logis_net_width
- 5 mm
- logis_net_height
- 43 mm
- logis_net_depth
- 51 mm
ambalare pentru transport
- Cantitate
- 120
- EAN
- 3838895788386
- Greutate
- 0.94 kg
- Cantitate. transport
- 54000
Clasificare ETIM
- Clasificare
- EC000897
- Denumire clasă
- Feed-through terminal block
- Connectable conductor cross section fine-strand without cable end sleeve
- 0.2…4
- Connectable conductor cross section fine-strand with cable end sleeve
- 0.2…2.5
- Connectable conductor cross section solid-core
- 0.2…4
- Connectable conductor cross section multi-wired
- 0.2…4
- Rated current In
- 37
- Rated voltage
- 1000
- Type of electrical connection 1
- Screw connection
- Type of electrical connection 2
- Screw connection
- Number of levels
- 1
- Number of clamp positions per level
- 2
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Thermoplastic
- Operating temperature
- -40…100
- Inflammability class of insulation material according to with UL94
- V0
- Closing plate required
- Da
- Colour
- Blue
- Internally connected stages
- Nu
