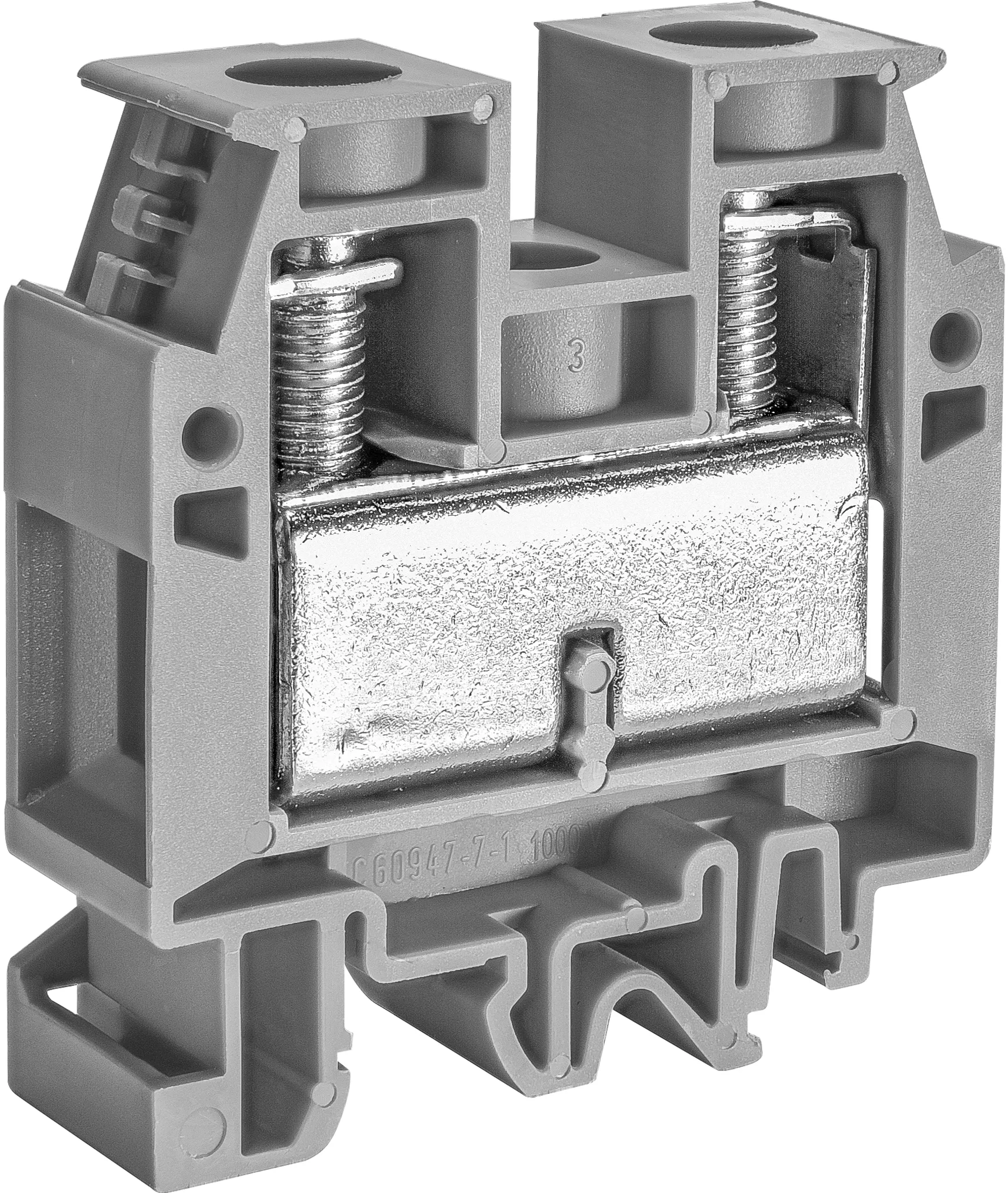

Bloc terminal ESC-CBD.50 003903241
Stoc
148
Disponibil
în 24h
Putem livra acest produs in 24 de ore.
Specificatii
- Cod ETI:
- 003903241
- Descriere:
- ESC-CBD.50
- Denumire clasă:
- Bloc terminal
- Nivel:
- Singura
- Tip:
- Blocuri terminale tip ES
- Tensiunea nominala de rezistenta Uimp (kV):
- 12kV
- Culoare:
- Grei
- Secțiune transversală nominală:
- 50mm²
- Curent maxim cu sectiunea transversala (mm2) :
- 150mm²
- Conexiune incrucisata :
- NO
- Sectiune finala :
- YES
Documente
Date logistica
Produse
- Cod produs EAN
- 3838895862819
- Greutatea produsului
- 0.069 kg
- Tarif vamal
- 85369010
- logis_net_width
- 18 mm
- logis_net_height
- 57 mm
- logis_net_depth
- 61 mm
ambalare pentru transport
- Cantitate
- 50
- EAN
- 3838895843429
- Greutate
- 3.604 kg
- Cantitate. transport
- 7800
Clasificare ETIM
- Clasificare
- EC000897
- Denumire clasă
- Feed-through terminal block
- Connectable conductor cross section fine-strand without cable end sleeve
- 1.5…50
- Connectable conductor cross section fine-strand with cable end sleeve
- 1.5…50
- Connectable conductor cross section solid-core
- 1…70
- Connectable conductor cross section multi-wired
- 1.5…50
- Rated current In
- 150
- Rated voltage
- 1000
- Type of electrical connection 1
- Screw connection
- Type of electrical connection 2
- Screw connection
- Number of levels
- 1
- Number of clamp positions per level
- 2
- Mounting method
- DIN rail (top hat rail)/G-rail TH35/G32
- Material insulation body
- Thermoplastic
- Operating temperature
- -40…100
- Inflammability class of insulation material according to with UL94
- V0
- Closing plate required
- Da
- Colour
- Grey
