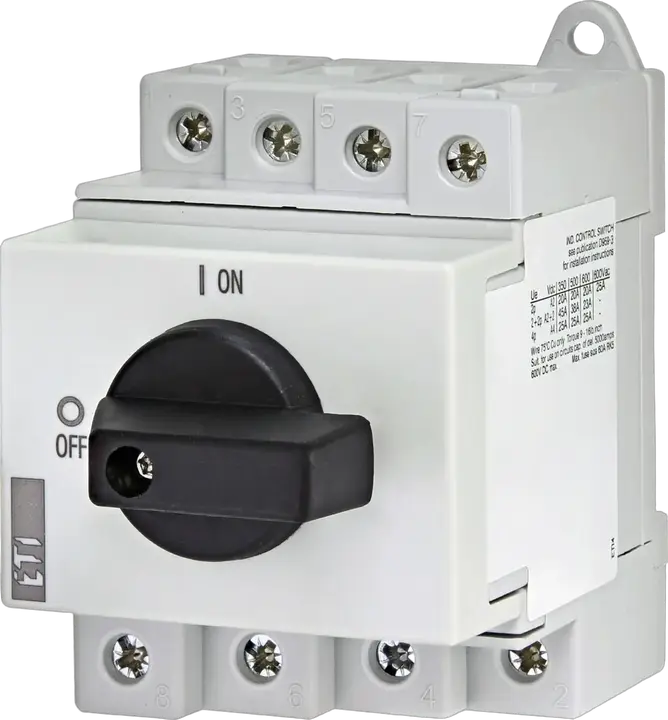

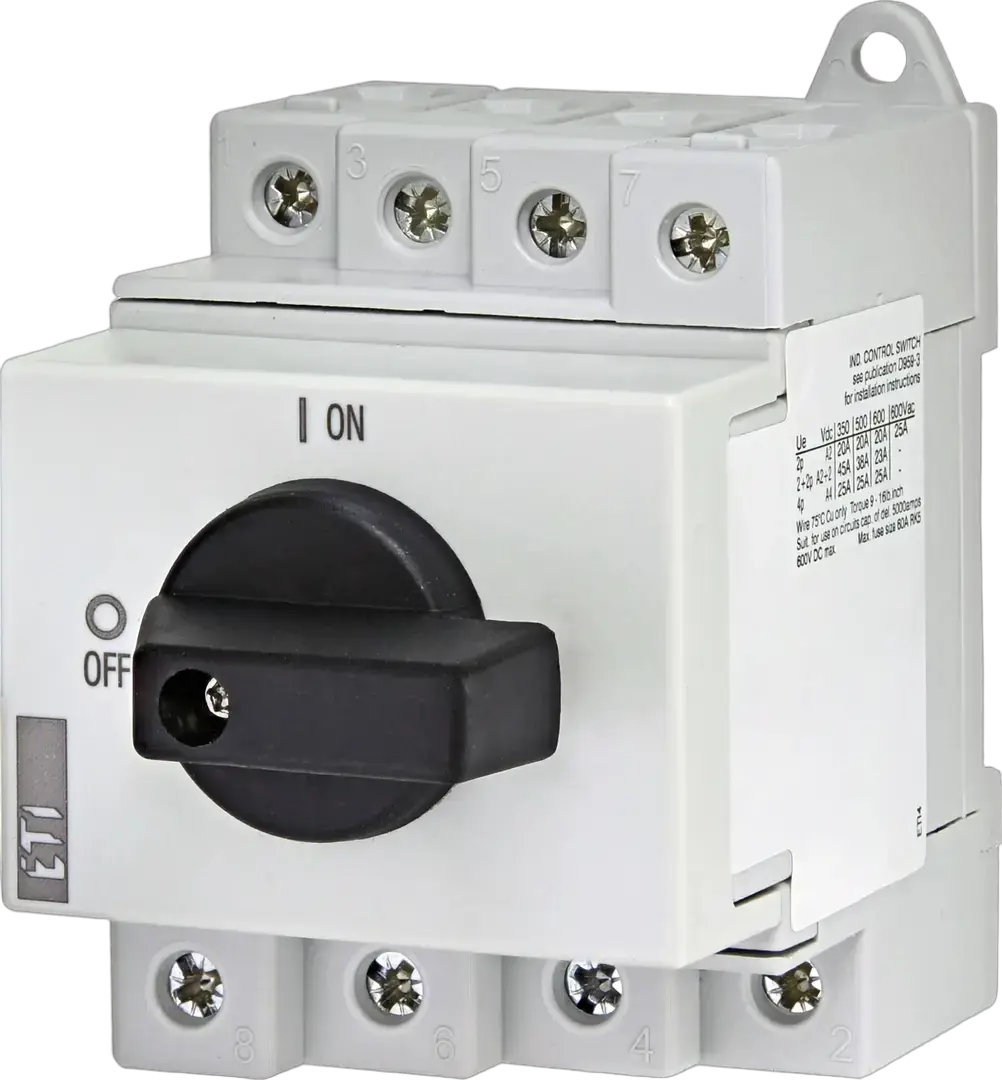

LS25 SMA A4 Separator PV

Name: LS25 SMA A4
Brand: ETI Elektroelement d.o.o.
SKU: 004660064

Disponibil în ore 24

Stoc produse 41

Preț incl. TVA 430,38 LEI

Cod ETI:: 004660064
Grup Catalog:: Comutatoare cu came
Tip montaj:: TH 35
Funcție:: PV Switch disconnectors, 0-1
Număr de poli:: 4
Tensiunea maxima de operare Ur:: 1.500 V
Curent termic Ith:: 25 A
Curent nominal operational Ie DC-21 B la 1000V DC:: 25 A
Tip:: DIN-rail mounted

Accesorii

Produs

Greutate: 0,15 kg
Net width: 60 mm
Net height: 95 mm
Net depth: 89,7 mm
Stock unit of measure: pcs

Ambalare de bază

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895567639
Basic packaging weight: 0,24 kg
Basic Packaging Dimensions Height: 80 mm
Basic Packaging Dimensions Width: 95 mm
Basic Packaging Dimensions Depth: 90 mm
Basic packaging volume: 0,684 dm³

Ambalare transport

Transport packaging quantity: 40 pcs
EAN code for a transport packaging: 3838895712893
Transport packaging weight: 10,28 kg
Transport Packaging Dimensions Height: 340 mm
Transport Packaging Dimensions Width: 245 mm
Transport Packaging Dimensions Depth: 440 mm
Transport packaging volume: 36,652 dm³
Pallet quantity: 2.560 pcs
Customs tariff: 85365080

Rated permanent current at AC-21, 400 V: 25 A
Version as maintenance-/service switch: Da
Version as safety switch: Da
Max. rated operation voltage Ue AC: 440 V
Rated permanent current Iu: 25 A
Type of control element: Turn button
Conditioned rated short-circuit current Iq: 5 kA
Type of electrical connection of main circuit: Frame clamp
Degree of protection (IP), front side: IP20
Number of poles: 4
Device construction: Built-in device fixed built-in technique
Colour control element: Black
Suitable for distribution board installation: Da
Version as main switch: Da
Rated operating voltage(Min): 300 V
Rated operating voltage(Max): 1.000 V

Clasificare ETIM – versiunea 9.0

Eplan

Software-ul este furnizat ca atare, fără garanții. Autorul nu este obligat să ofere suport, service, corecții sau actualizări pentru programele software gratuite sau driverele.

004660064 Separator PV LS25 SMA A4 Green protect Switch disconnector Switch disconnector LS 4-pole 4-pole 4-pole International Comutatoare de sarcină modulare Separatori pentru LS DC Tensiunea maxima de operare Ur (V) : 1500 V Tip: DIN-rail mounted Curent termic Ith (A) : 25 A Funcție: PV Switch disconnectors, 0-1 Număr de poli: 4 Curent nominal operational Ie DC-21 B la 1000V DC (A) : 25 A Separator PV TOWAR
