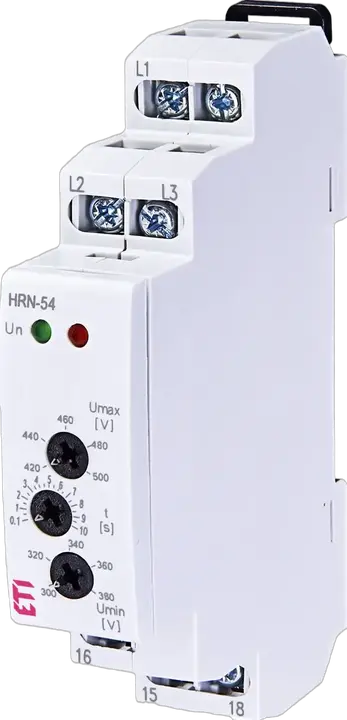

HRN-54 Releu control

Disponibil în zile 14

Preț incl. TVA 393,68 LEI

Cod ETI:: 002471416
Funcție:: Monitoring and Control relays
Aplicație:: Monitors phase sequence and phase loss in 3 × 400 V three-phase networks, providing protection against damage caused by incorrect supply conditions
Tipul de control :: Lipsă fază, Succesiunea fazelor
Tensiunea de alimentare :: 400 V
Tipul voltajului :: AC
Curent maxim de contact:: 8 A
Curent nominal:: 8 A
Capacitatea maxima de incarcare AC1:: 2.000 VA
Secțiunea de racordare:: 0.5-2.5 mm²
Tip montaj:: Sina DIN
Grad de protecție IP:: IP40
Număr contacte NO:: 1
Număr contacte CO:: 1
Număr de contacte NC:: 1
Tipuri de contacte :: 1xCO
Numarul de contacte:: 1

Accesorii

Produs

Greutate: 0,07 kg
Net width: 17,5 mm
Net height: 91,3 mm
Net depth: 64,26 mm
Stock unit of measure: pcs

Ambalare de bază

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895452195
Basic packaging weight: 0,06 kg
Basic Packaging Dimensions Height: 70 mm
Basic Packaging Dimensions Width: 97 mm
Basic Packaging Dimensions Depth: 25 mm
Basic packaging volume: 0,17 dm³

Ambalare transport

Transport packaging quantity: 10 pcs
EAN code for a transport packaging: 3838895452201
Transport packaging weight: 0,74 kg
Transport Packaging Dimensions Height: 102 mm
Transport Packaging Dimensions Width: 284 mm
Transport Packaging Dimensions Depth: 75 mm
Transport packaging volume: 2,173 dm³
Pallet quantity: 4.600 pcs
Customs tariff: 85364900

Single-phase under voltage possible: ✓
Width: 18 mm
Three-phase under voltage possible: ✓
Single-phase hysteresis possible: ✓
Max. permitted delay-on energization time: 10 s
Min. adjustable delay-on energization time: 0,1 s
Voltage type (operating voltage): AC
Max. permitted off-delay time: 10 s
Voltage type (supply voltage): AC
Min. adjustable off-delay time: 0,1 s
Three-phase over voltage possible: ✓
Type of voltage measuring range: AC
Rated switch current: 8 A
Single-phase over voltage possible: ✓
Depth: 64 mm
Three-phase hysteresis possible: ✓
Type of electric connection: Screw connection
Number of contacts as change-over contact: 1
Height: 90 mm
Operating voltage AC 50 Hz(Min): 400 V
Operating voltage AC 60 Hz(Min): 400 V
Supply voltage AC 60 Hz(Min): 400 V
Voltage measuring range 2(Min): 300 V
Voltage measuring range 1(Min): 420 V
Supply voltage AC 50 Hz(Min): 400 V
Voltage measuring range 1(Max): 500 V
Supply voltage AC 50 Hz(Max): 400 V
Operating voltage AC 60 Hz(Max): 400 V
Operating voltage AC 50 Hz(Max): 400 V
Voltage measuring range 2(Max): 380 V
Supply voltage AC 60 Hz(Max): 400 V

Clasificare ETIM – versiunea 9.0
