001900345

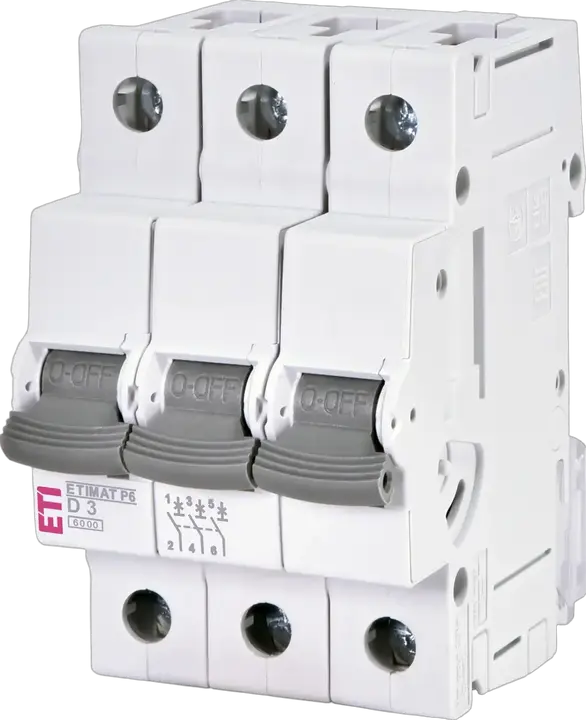

ETIMAT P6 3p D3 Disjunctor miniatural

Cod ETI:: 001900345
Aplicație:: 60898-1, 60947-2
Curent nominal:: 3 A
Caracteristică de întrerupere:: D
Număr de poli:: 3
Capacitatea de rupere:: 6 kA
Tipul voltajului :: AC
Tensiunea nominala de rezistenta Uimp:: 6 kV
Tensiune nominală AC:: 415 V
Frecvență nominală:: 50/60 Hz
Secțiune transversală nominală:: 1-25 mm²
Standarde:: 60898-1, 60947-2
Funcție:: MCB

Accesorii

Produs

EAN code for a single product: 3838895950868
Greutate: 377 g
Net width: 53,4 mm
Net height: 89 mm
Net depth: 74,74 mm
Stock unit of measure: pcs

Ambalare de bază

Basic packaging quantity: 4 pcs
EAN code for a basic packaging: 3838895950875
Basic packaging weight: 1,564 kg
Basic Packaging Dimensions Height: 79 mm
Basic Packaging Dimensions Width: 91 mm
Basic Packaging Dimensions Depth: 220 mm
Basic packaging volume: 1,582 dm³

Ambalare transport

Transport packaging quantity: 36 pcs
EAN code for a transport packaging: 3838895950882
Transport packaging weight: 14,429 kg
Transport Packaging Dimensions Height: 0,25 m
Transport Packaging Dimensions Width: 0,235 m
Transport Packaging Dimensions Depth: 0,295 m
Transport packaging volume: 0,017 m³
Pallet quantity: 1.872 pcs
Customs tariff: 85362010

Additional equipment possible: Da
Rated insulation voltage Ui: 500 V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V: 6 kA
Built-in depth: 70 mm
Voltage type: AC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V: 6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V: 6 kA
Rated impulse withstand voltage Uimp: 6 kV
Degree of protection (IP): IP20
Release characteristic: D
Over voltage category: 3
Number of poles (total): 3
Pollution degree: 2
Concurrently switching neutral conductor: Da
Number of protected poles: 3
Rated voltage: 415 V
Current limiting class: 3
Rated current: 3 A
Flush-mounted installation: Da
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V: 6 kA
Width in number of modular spacings: 3
Frequency(Min): 50 Hz
Ambient temperature during operating(Min): -40 °C
Connectable conductor cross section solid-core(Min): 1 mm²
Connectable conductor cross section multi-wired(Min): 1 mm²
Connectable conductor cross section solid-core(Max): 25 mm²
Connectable conductor cross section multi-wired(Max): 25 mm²
Frequency(Max): 60
Ambient temperature during operating(Max): 70 °C

Clasificare ETIM – versiunea 9.0
