001903215

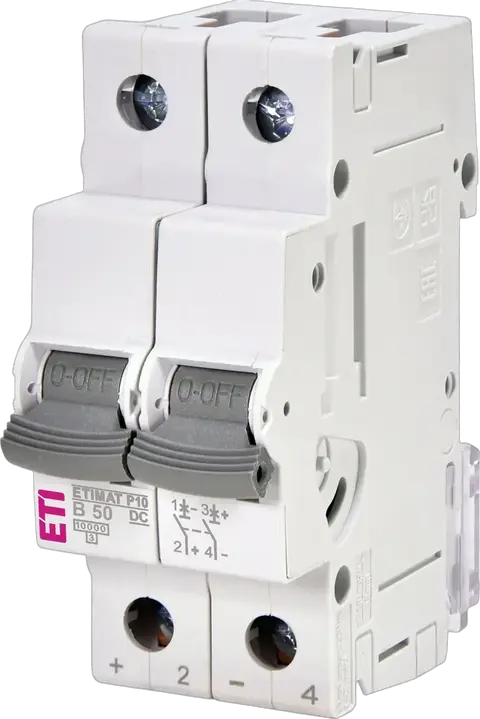

ETIMAT P10-DC 2p B50 Disjunctor miniatural

Disponibil în zile 14

Preț incl. TVA 213,29 LEI

Cod ETI:: 001903215
Aplicație:: 60898-2
Curent nominal:: 50 A
Caracteristică de întrerupere:: B
Număr de poli:: 2
Capacitatea de rupere:: 10 kA
Tipul voltajului :: DC
Tensiunea nominala de rezistenta Uimp:: 6 kV
Tensiune nominală AC:: 440 V
Tensiune nominală DC:: 440 V
Frecvență nominală:: 1/25 Hz
Secțiune transversală nominală:: 1-25 mm²
Standarde:: 60898-2
Funcție:: MCB

Accesorii

Produs

EAN code for a single product: 3838895962489
Greutate: 261 g
Net width: 35,6 mm
Net height: 89 mm
Net depth: 74,74 mm
Stock unit of measure: pcs

Ambalare de bază

Basic packaging quantity: 6 pcs
EAN code for a basic packaging: 3838895962496
Basic packaging weight: 1,622 kg
Basic Packaging Dimensions Height: 79 mm
Basic Packaging Dimensions Width: 91 mm
Basic Packaging Dimensions Depth: 220 mm
Basic packaging volume: 1,582 dm³

Ambalare transport

Transport packaging quantity: 54 pcs
EAN code for a transport packaging: 3838895962502
Transport packaging weight: 14,951 kg
Transport Packaging Dimensions Height: 0,25 m
Transport Packaging Dimensions Width: 0,235 m
Transport Packaging Dimensions Depth: 0,295 m
Transport packaging volume: 0,017 m³
Pallet quantity: 2.808 pcs
Customs tariff: 85362010

Additional equipment possible: Da
Rated insulation voltage Ui: 500 V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V: 10 kA
Built-in depth: 70 mm
Voltage type: DC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V: 10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V: 10 kA
Rated impulse withstand voltage Uimp: 6 kV
Degree of protection (IP): IP20
Release characteristic: B
Over voltage category: 3
Number of poles (total): 2
Pollution degree: 2
Concurrently switching neutral conductor: Da
Number of protected poles: 2
Rated voltage: 440 V
Current limiting class: 3
Rated current: 50 A
Flush-mounted installation: Da
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V: 10 kA
Width in number of modular spacings: 2
Frequency(Min): 1 Hz
Ambient temperature during operating(Min): -40 °C
Connectable conductor cross section solid-core(Min): 1 mm²
Connectable conductor cross section multi-wired(Min): 1 mm²
Connectable conductor cross section solid-core(Max): 25 mm²
Connectable conductor cross section multi-wired(Max): 25 mm²
Frequency(Max): 25
Ambient temperature during operating(Max): 70 °C
