002115511

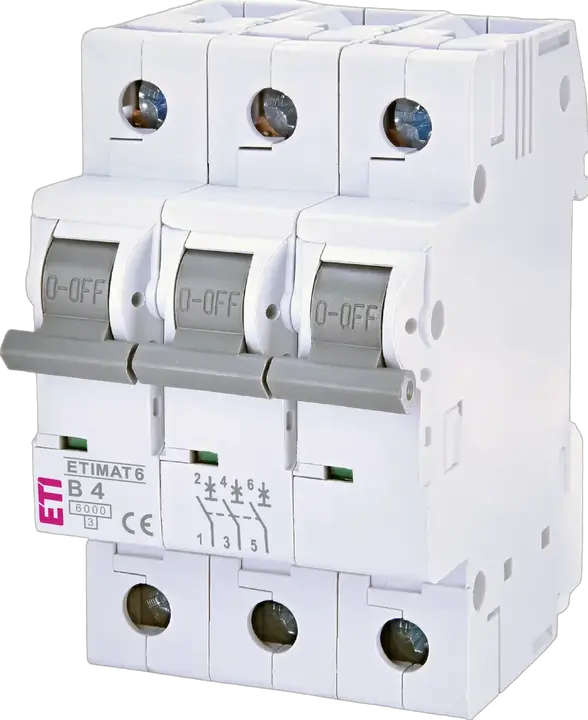

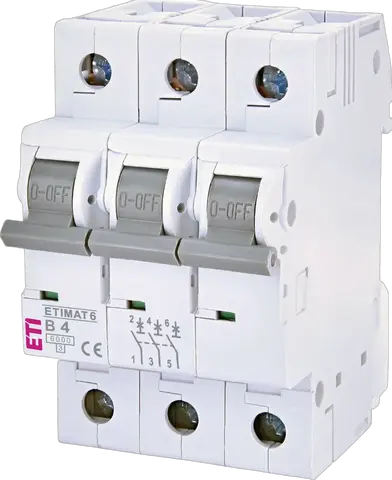

ETIMAT 6 3p B4 Disjunctor miniatural

Cod ETI:: 002115511
Aplicație:: IEC/EN 60898-1, IEC 60947-2
Curent nominal:: 4 A
Caracteristică de întrerupere:: B
Număr de poli:: 3
Capacitatea de rupere:: 6 kA
Tipul voltajului :: AC
Tensiunea nominala de rezistenta Uimp:: 6 kV
Tensiune nominală AC:: 400 V
Frecvență nominală:: 50/60 Hz
Secțiune transversală nominală:: 1-25 mm²
Standarde:: IEC/EN 60898-1, IEC 60947-2
Funcție:: MCB

Accesorii

Produs

EAN code for a single product: 3838895790518
Greutate: 0,345 kg
Net width: 52,8 mm
Net height: 85,4 mm
Net depth: 72,63 mm
Stock unit of measure: pcs

Ambalare de bază

Basic packaging quantity: 4 pcs
EAN code for a basic packaging: 3838895790525
Basic packaging weight: 1,436 kg
Basic Packaging Dimensions Height: 0,077 m
Basic Packaging Dimensions Width: 0,09 m
Basic Packaging Dimensions Depth: 0,221 m
Basic packaging volume: 0,002 m³

Ambalare transport

Transport packaging quantity: 36 pcs
EAN code for a transport packaging: 3838895790532
Transport packaging weight: 13,277 kg
Transport Packaging Dimensions Height: 0,25 m
Transport Packaging Dimensions Width: 0,235 m
Transport Packaging Dimensions Depth: 0,295 m
Transport packaging volume: 0,017 m³
Pallet quantity: 1.872 pcs
Customs tariff: 85362010

Additional equipment possible: Da
Rated insulation voltage Ui: 500 V
Built-in depth: 68 mm
Voltage type: Other
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V: 6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V: 6 kA
Rated impulse withstand voltage Uimp: 4 kV
Degree of protection (IP): IP20
Release characteristic: B
Over voltage category: 3
Number of poles (total): 3
Pollution degree: 3
Number of protected poles: 3
Rated voltage: 400 V
Current limiting class: 3
Rated current: 4 A
Flush-mounted installation: Da
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V: 6 kA
Width in number of modular spacings: 3
Frequency(Min): 50 Hz
Ambient temperature during operating(Min): -25 °C
Connectable conductor cross section solid-core(Min): 1 mm²
Connectable conductor cross section multi-wired(Min): 1 mm²
Connectable conductor cross section solid-core(Max): 25 mm²
Connectable conductor cross section multi-wired(Max): 25 mm²
Frequency(Max): 60
Ambient temperature during operating(Max): 55 °C

Clasificare ETIM – versiunea 9.0
