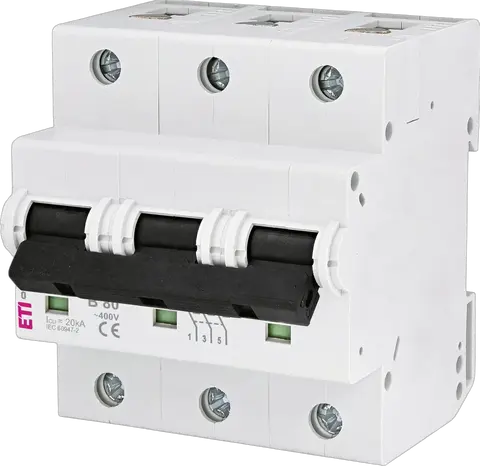

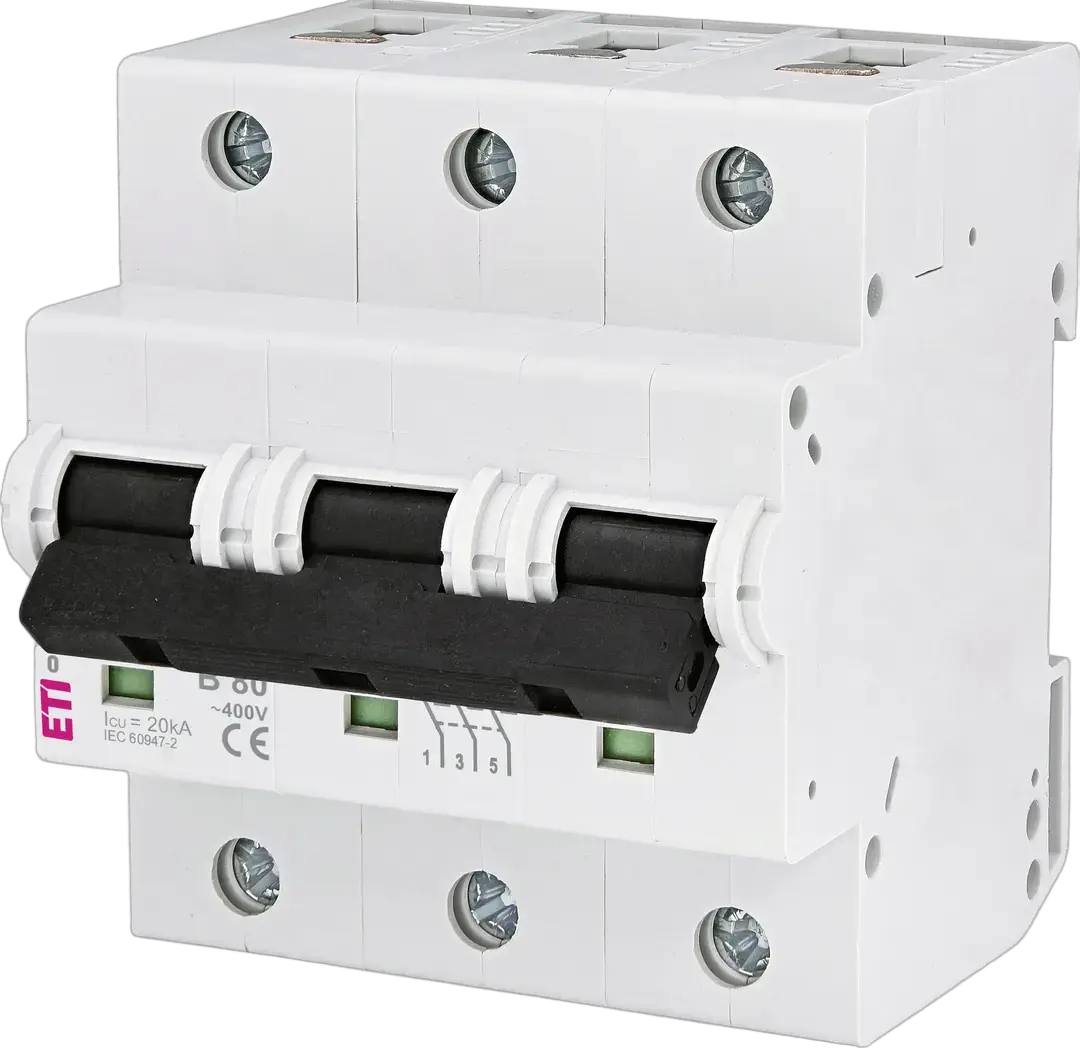

ETIMAT 10 3p B80 Disjunctor miniatural

Disponibil în zile 14

Cod ETI:: 002125731
Aplicație:: IEC/EN 60898-1, IEC 60947-2
Curent nominal:: 80 A
Caracteristică de întrerupere:: B
Număr de poli:: 3
Capacitatea de rupere:: 20 kA
Tipul voltajului :: AC
Tensiunea nominala de rezistenta Uimp:: 4 kV
Tensiune nominală AC:: 415 V
Frecvență nominală:: 50/60 Hz
Secțiune transversală nominală:: 1-25 mm²
Standarde:: IEC/EN 60898-1, IEC 60947-2
Funcție:: MCB

Accesorii

Produs

Greutate: 0,691 kg
Net width: 81 mm
Net height: 90,8 mm
Net depth: 78,64 mm
Stock unit of measure: pcs

Ambalare de bază

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895811275
Basic packaging weight: 0,785 kg
Basic Packaging Dimensions Height: 0,075 m
Basic Packaging Dimensions Width: 0,09 m
Basic Packaging Dimensions Depth: 0,22 m
Basic packaging volume: 0,001 m³

Ambalare transport

Transport packaging quantity: 18 pcs
EAN code for a transport packaging: 3838895811282
Transport packaging weight: 14,48 kg
Transport Packaging Dimensions Height: 0,25 m
Transport Packaging Dimensions Width: 0,235 m
Transport Packaging Dimensions Depth: 0,295 m
Transport packaging volume: 0,017 m³
Pallet quantity: 936 pcs
Customs tariff: 85362090

Additional equipment possible: Da
Rated insulation voltage Ui: 440 V
Built-in depth: 75 mm
Voltage type: Other
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V: 10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V: 20 kA
Rated impulse withstand voltage Uimp: 4 kV
Degree of protection (IP): IP20
Release characteristic: B
Over voltage category: 3
Number of poles (total): 3
Pollution degree: 3
Number of protected poles: 3
Rated voltage: 415 V
Current limiting class: 3
Rated current: 80 A
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V: 10 kA
Width in number of modular spacings: 4,5
Frequency(Min): 50 Hz
Ambient temperature during operating(Min): -25 °C
Connectable conductor cross section solid-core(Min): 2,5 mm²
Connectable conductor cross section multi-wired(Min): 1 mm²
Connectable conductor cross section solid-core(Max): 50 mm²
Connectable conductor cross section multi-wired(Max): 25 mm²
Frequency(Max): 60
Ambient temperature during operating(Max): 55 °C
