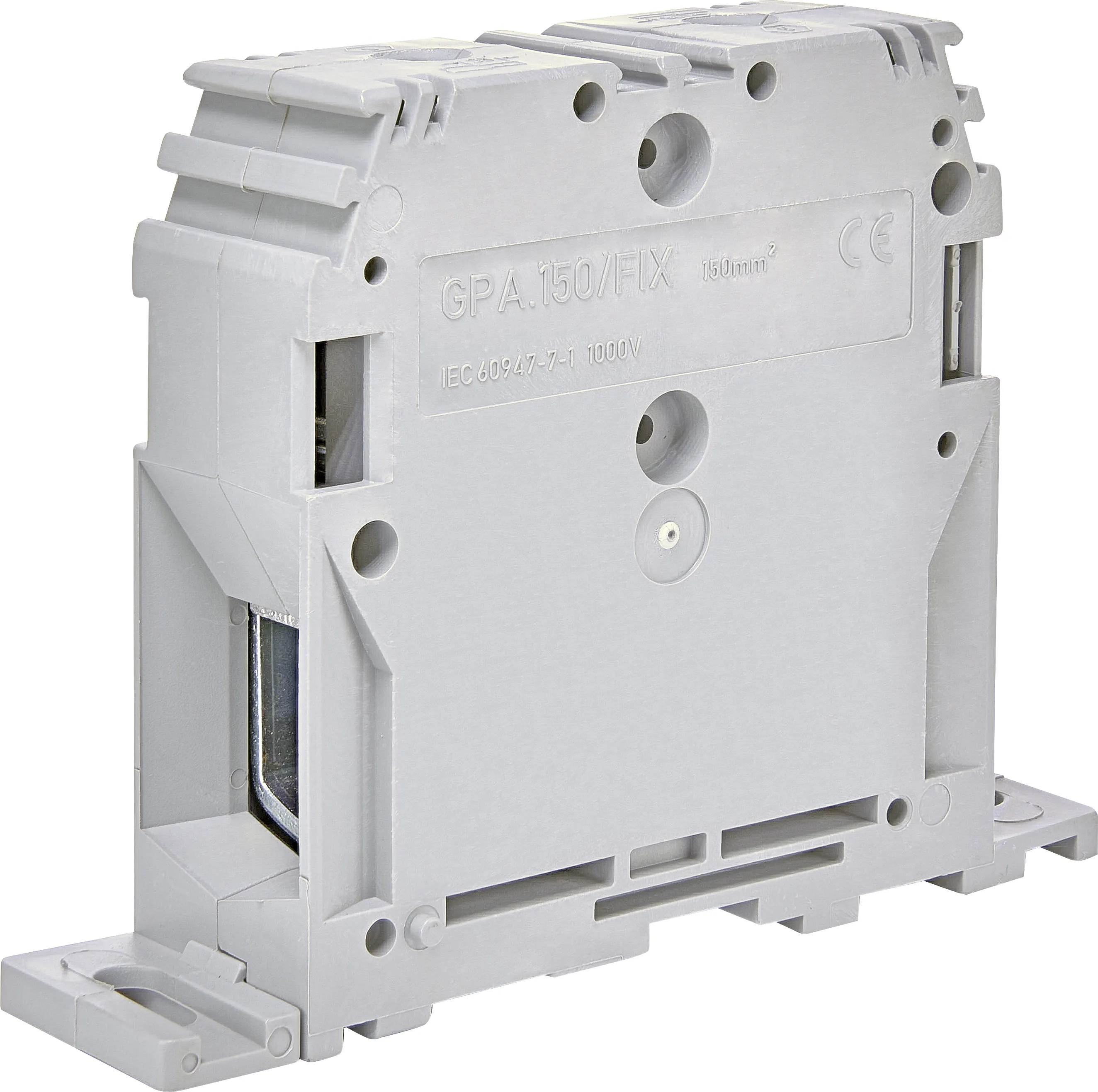

Bloc terminal ESC-GPA.150/FIX 003903213
Preț cu TVA
87.56 Lei
Disponibil
Specificatii
- Cod ETI:
- 003903213
- Descriere:
- ESC-GPA.150/FIX
- Denumire clasă:
- Bloc terminal
- Nivel:
- Singura
- Tip:
- Blocuri terminale tip ES
- Tensiunea nominala de rezistenta Uimp (kV):
- 12kV
- Culoare:
- Grei
- Secțiune transversală nominală:
- 150mm²
- Curent maxim cu sectiunea transversala (mm2) :
- 309mm²
- Sectiunea transversala a conductorului (mm2) :
- 50mm²-185mm²
- Conexiune incrucisata :
- NO
- Sectiune finala :
- NO
Documente
Date logistica
Produse
- Cod produs EAN
- 3838895860419
- Greutatea produsului
- 0.339 kg
- Tarif vamal
- 85369010
- logis_net_width
- 35 mm
- logis_net_height
- 122 mm
- logis_net_depth
- 94 mm
ambalare pentru transport
- Cantitate
- 8
- EAN
- 3838895830610
- Greutate
- 2.72 kg
- Cantitate. transport
- 1344
Clasificare ETIM
- Clasificare
- EC000897
- Denumire clasă
- Feed-through terminal block
- Connectable conductor cross section fine-strand without cable end sleeve
- 50…150
- Connectable conductor cross section fine-strand with cable end sleeve
- 50…150
- Connectable conductor cross section solid-core
- 50…185
- Connectable conductor cross section multi-wired
- 50…185
- Rated current In
- 309
- Rated voltage
- 1000
- Type of electrical connection 1
- Screw connection
- Type of electrical connection 2
- Screw connection
- Number of levels
- 1
- Number of clamp positions per level
- 2
- Mounting method
- Direct mounting
- Material insulation body
- Thermoplastic
- Operating temperature
- -40…100
- Inflammability class of insulation material according to with UL94
- V0
- Closing plate required
- Nu
- Colour
- Grey
