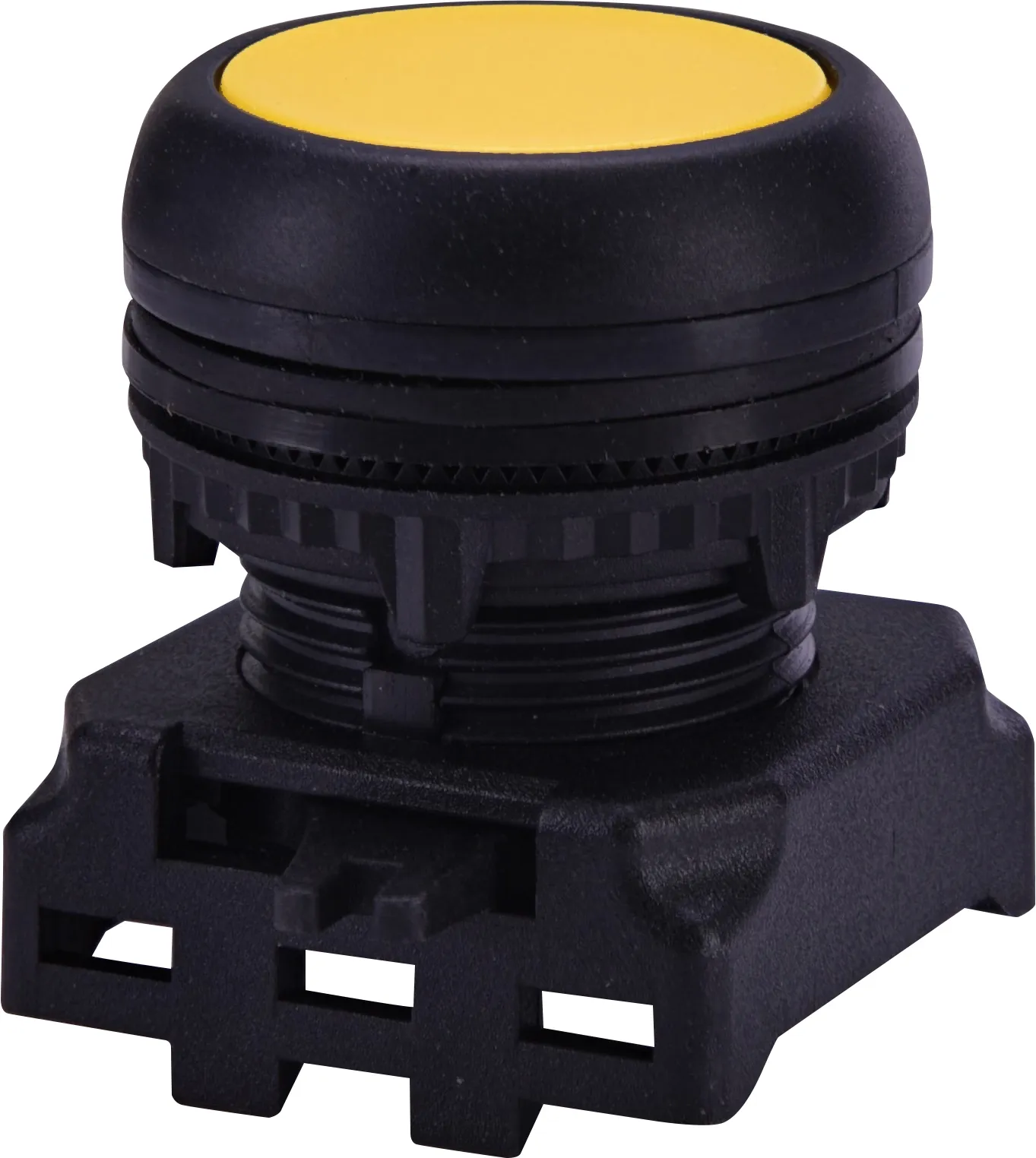

Buton acționare EGF-Y 004771243

Disponibil
intrebati
Putem livra acest produs in 14 zile.

Specificatii

Cod ETI:
004771243
Descriere:
EGF-Y
Denumire clasă:
Buton acționare
Funcție:
Acționare motor neiluminată
Tip:
Buton acționare motor colorat
Tensiune nominală AC (V):
230
Grup Catalog:
Actuatori și indicatori linie E

Documente

Produse

Cod produs EAN
3838895807469
Greutatea produsului
0.02  kg
Tarif vamal
85389099
logis_net_width
38  mm
logis_net_height
31  mm
logis_net_depth
37  mm

Ambalare de baza

Cantitate
10
EAN
3838895780175
Greutate
0.26  kg

ambalare pentru transport

Cantitate
140
EAN
3838895780182
Greutate
3.64  kg
Cantitate. transport
11200
Clasificare
EC000221
Denumire clasă
Front element for push button
Colour button
Yellow
Hole diameter
22,5mm
Degree of protection (IP), front side
IP65
Clasificare ETIM – Clasificare ETIM Versiune 7.0

Imagini & Diagrame

004771243 Flush mounted enclosure Push button actuator, EGF-Y ETISIG Actuators and indicators Actuators and indicators Non-illuminated actuators Non-illuminated actuators Push button actuators - flush head Automation, signaling and control devices Actuators and indicators 22,5mm ETISIG Actuators and indicators with accessories Actuators and indicators EGF-Y Function Non-illuminated actuators Rated current 2A Type Push button actuators-flush head Number of NC contacts 1 Rated AC voltage 230V IP rating IP65 Color Yellow Catalogue Group Actuators and indicators E-line Rated Frequency 50 ... 60Hz Rated cross section 1 ... 2,5 Number of NO contacts 1 Working temperature -30 ... 60°C Voltage type AC Terminals 1 ... 2,5 Contacts NO & NC Rated insulation voltage 600V Thermal current Ith 10A Storage temperature -25 ... 70°C Approvals RoHS compliance Mechanical cycles 1.000.000 (push function) Electrical cycles 100.000 (for contact) HV test 2,5kV Push button actuator EGF Non-illuminated actuators 230V Yellow
