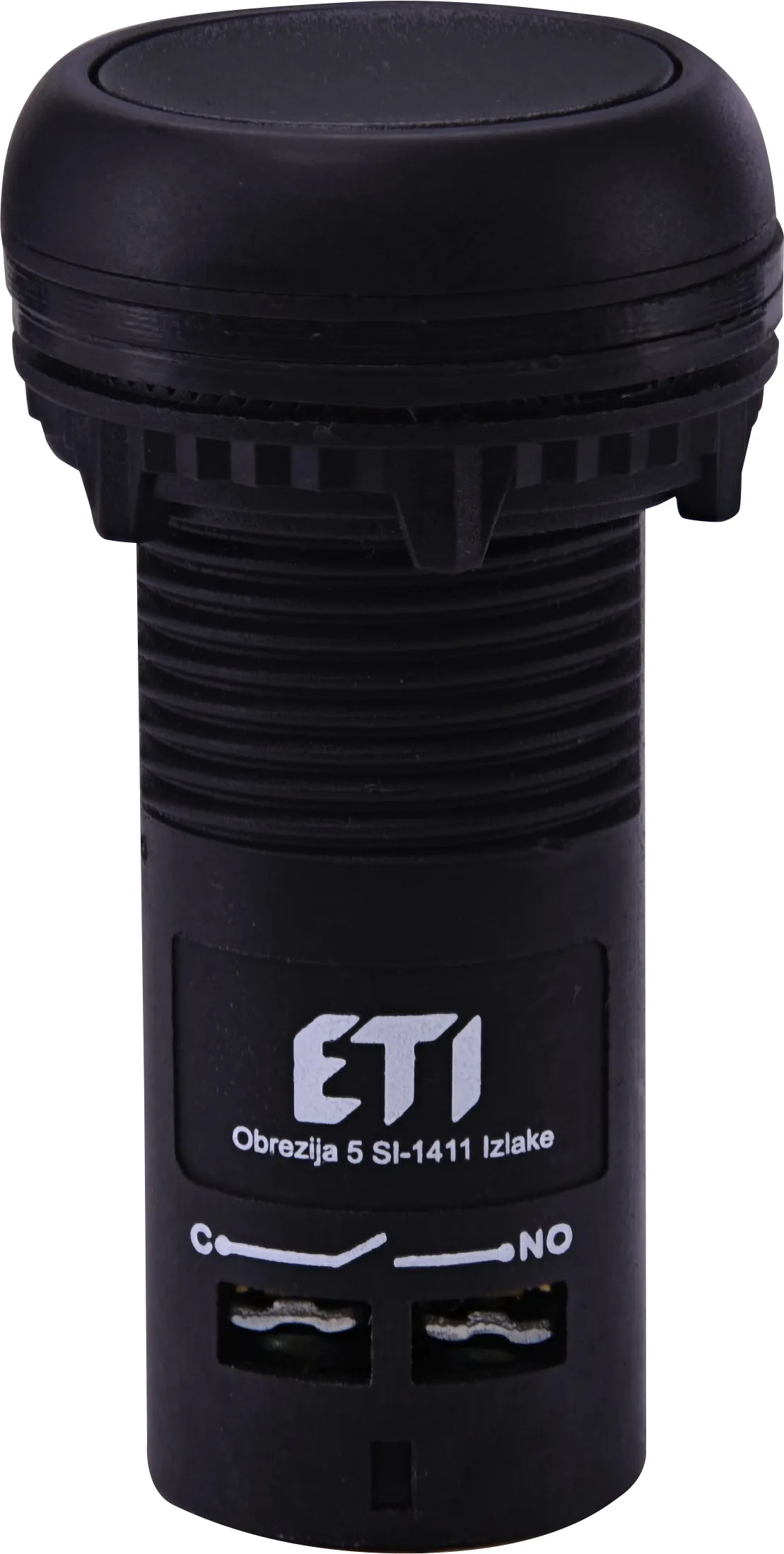

Buton ECF-10-C 004771453

Disponibil
intrebati
Putem livra acest produs in 14 zile.

Specificatii

Cod ETI:
004771453
Descriere:
ECF-10-C
Denumire clasă:
Buton
Funcție:
Acționare motor neiluminată
Tip:
Compact integral actuator
Tensiune nominală AC (V):
230
Grup Catalog:
Actuatori și indicatori linie E

Documente

Produse

Cod produs EAN
3838895808510
Greutatea produsului
0.021  kg
Tarif vamal
85389099
logis_net_width
30  mm
logis_net_height
30  mm
logis_net_depth
58  mm

Ambalare de baza

Cantitate
20
EAN
3838895783176
Greutate
0.49  kg

ambalare pentru transport

Cantitate
300
EAN
3838895783183
Greutate
7.35  kg
Cantitate. transport
26700
Clasificare
EC001028
Denumire clasă
Push button, complete
Type of button
Flat
Colour button
Black
Construction type lens
Round
Hole diameter
22,5mm
Spring-return
Da
Number of contacts as normally open contact
1
Type of electric connection
Screw connection
Degree of protection (IP)
IP65
Clasificare ETIM – Clasificare ETIM Versiune 7.0

Imagini & Diagrame

004771453 Flush mounted enclosure Push.butt., ECF-10-C ETISIG Actuators and indicators Actuators and indicators Non-illuminated actuators Non-illuminated actuators Compact integral actuators NO Automation, signaling and control devices Actuators and indicators 22,5mm ETISIG Actuators and indicators with accessories Actuators and indicators ECF-10-C Function Non-illuminated actuators Rated current 2A Type Compact integral actuator Rated AC voltage 230V IP rating IP65 Color Black Catalogue Group Actuators and indicators E-line Rated Frequency 50 ... 60Hz Rated cross section 1 ... 2,5 Number of NO contacts 1 Working temperature -30 ... 60°C Voltage type AC Terminals 1 ... 2,5 Contacts NO Rated insulation voltage 600V Thermal current Ith 10A Storage temperature -25 ... 70°C Mechanical cycles 1.000.000 (push function) Electrical cycles 100.000 (for contact) HV test 2,5kV Push.butt. ECF Non-illuminated actuators 230V Black

Accesorii 31

>
>
