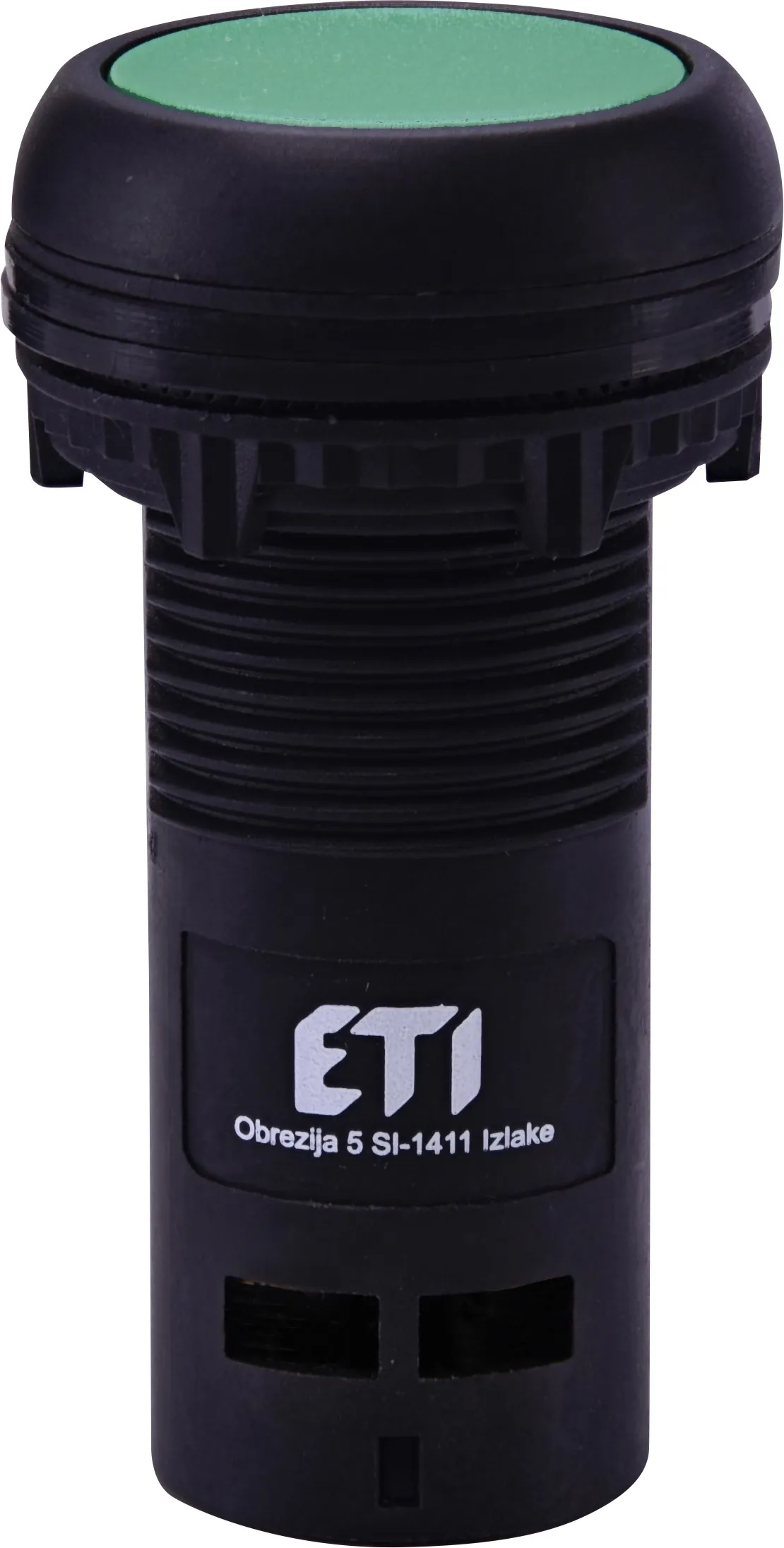

Buton ECF-01-G 004771461

Preț cu TVA
17.90 Lei
Stoc
26
Disponibil
în 24h
Putem livra acest produs in 24 de ore.

Specificatii

Cod ETI:
004771461
Descriere:
ECF-01-G
Denumire clasă:
Buton
Funcție:
Acționare motor neiluminată
Tip:
Compact integral actuator
Tensiune nominală AC (V):
230
Grup Catalog:
Actuatori și indicatori linie E

Documente

Produse

Cod produs EAN
3838895808565
Greutatea produsului
0.021  kg
Tarif vamal
85389099
logis_net_width
30  mm
logis_net_height
30  mm
logis_net_depth
58  mm

Ambalare de baza

Cantitate
20
EAN
3838895783275
Greutate
0.49  kg

ambalare pentru transport

Cantitate
300
EAN
3838895783282
Greutate
7.35  kg
Cantitate. transport
26700
Clasificare
EC001028
Denumire clasă
Push button, complete
Type of button
Flat
Colour button
Green
Construction type lens
Round
Hole diameter
22,5mm
Spring-return
Da
Number of contacts as normally closed contact
1
Type of electric connection
Screw connection
Degree of protection (IP)
IP65
Clasificare ETIM – Clasificare ETIM Versiune 7.0

Imagini & Diagrame

004771461 Flush mounted enclosure Push.butt., ECF-01-G ETISIG Actuators and indicators Actuators and indicators Non-illuminated actuators Non-illuminated actuators Compact integral actuators NC Automation, signaling and control devices Actuators and indicators 22,5mm ETISIG Actuators and indicators with accessories Actuators and indicators ECF-01-G Function Non-illuminated actuators Rated current 2A Type Compact integral actuator Number of NC contacts 1 Rated AC voltage 230V IP rating IP65 Color Green Catalogue Group Actuators and indicators E-line Rated Frequency 50 ... 60Hz Rated cross section 1 ... 2,5 Working temperature -30 ... 60°C Voltage type AC Terminals 1 ... 2,5 Contacts NC Rated insulation voltage 600V Thermal current Ith 10A Storage temperature -25 ... 70°C Mechanical cycles 1.000.000 (push function) Electrical cycles 100.000 (for contact) HV test 2,5kV Push.butt. ECF Non-illuminated actuators 230V Green
