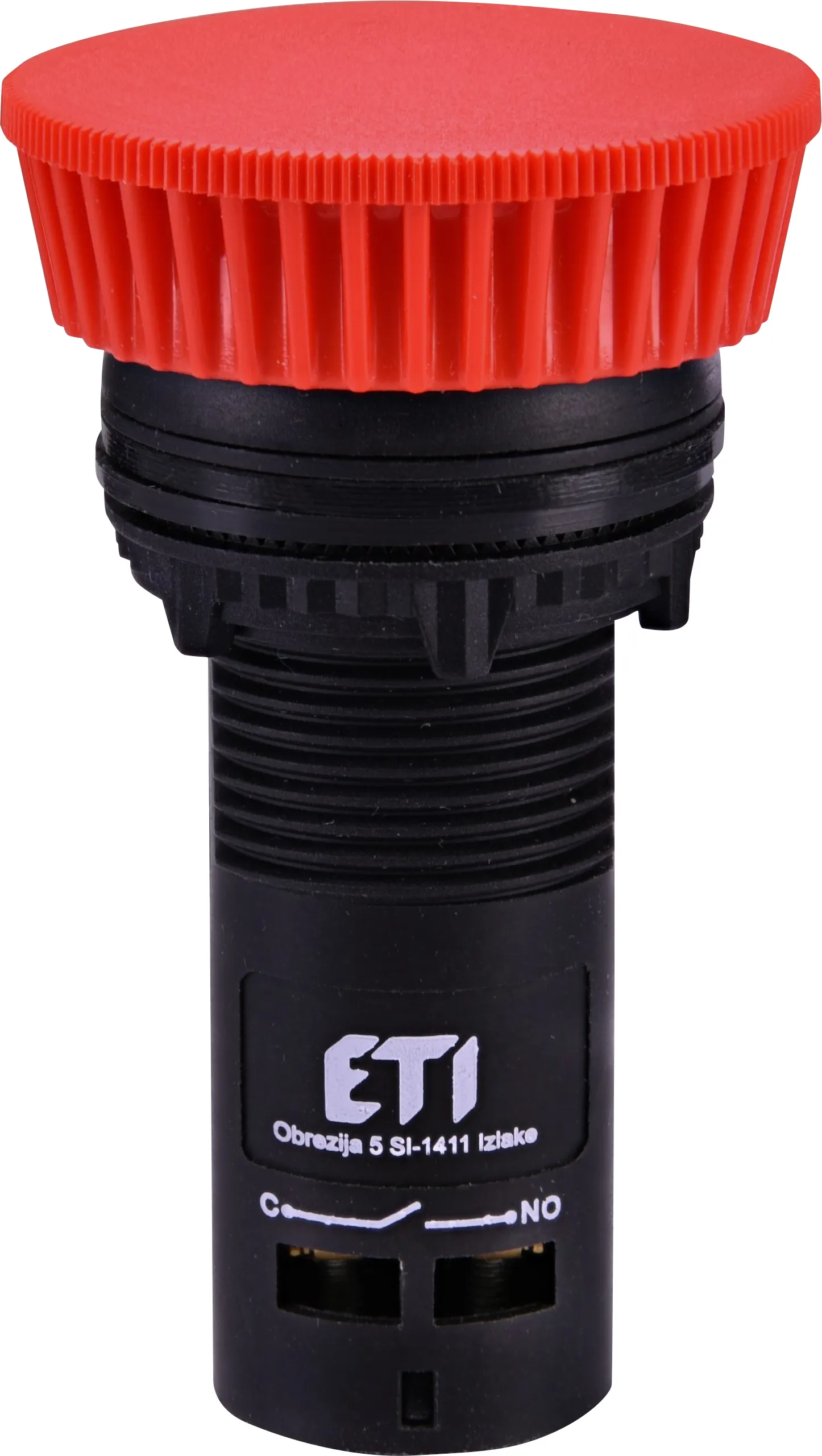

Buton ECM-P10-R 004771480

Disponibil
La cerere
Va rugam solicitati informatii despre produs.

Specificatii

Cod ETI:
004771480
Descriere:
ECM-P10-R
Denumire clasă:
Buton
Funcție:
Acționare motor neiluminată
Tip:
Buton acționare motor tip ciupercă 40mm
Tensiune nominală AC (V):
230
Grup Catalog:
Actuatori și indicatori linie E

Documente

Produse

Cod produs EAN
3838895808695
Greutatea produsului
0.028  kg
Tarif vamal
85389099
logis_net_width
40  mm
logis_net_height
40  mm
logis_net_depth
71  mm

Ambalare de baza

Cantitate
10
EAN
3838895783558
Greutate
0.35  kg

ambalare pentru transport

Cantitate
150
EAN
3838895783565
Greutate
5.25  kg
Cantitate. transport
13350
Clasificare
EC001028
Denumire clasă
Push button, complete
Type of button
Mushroom
Colour button
Red
Hole diameter
22,5mm
Spring-return
Da
Number of contacts as normally open contact
1
Type of electric connection
Screw connection
Degree of protection (IP)
IP65
Clasificare ETIM – Clasificare ETIM Versiune 7.0

Imagini & Diagrame

004771480 Flush mounted enclosure Push.butt., ECM-P10-R ETISIG Actuators and indicators Actuators and indicators Non-illuminated actuators Non-illuminated actuators Push button actuators - mushroom head 40mm Automation, signaling and control devices Actuators and indicators 22,5mm ETISIG Actuators and indicators with accessories Actuators and indicators ECM-P10-R Function Non-illuminated actuators Rated current 2A Type Push button actuators-mushroom head 40mm Rated AC voltage 230V IP rating IP65 Color Red Catalogue Group Actuators and indicators E-line Rated Frequency 50 ... 60Hz Rated cross section 1 ... 2,5 Working temperature -30 ... 60°C Voltage type AC Terminals 1 ... 2,5 Rated insulation voltage 600V Thermal current Ith 10A Storage temperature -25 ... 70°C Mechanical cycles 1.000.000 (push function) Electrical cycles 100.000 (for contact) HV test 2,5kV Push.butt. ECM Non-illuminated actuators 230V Red
