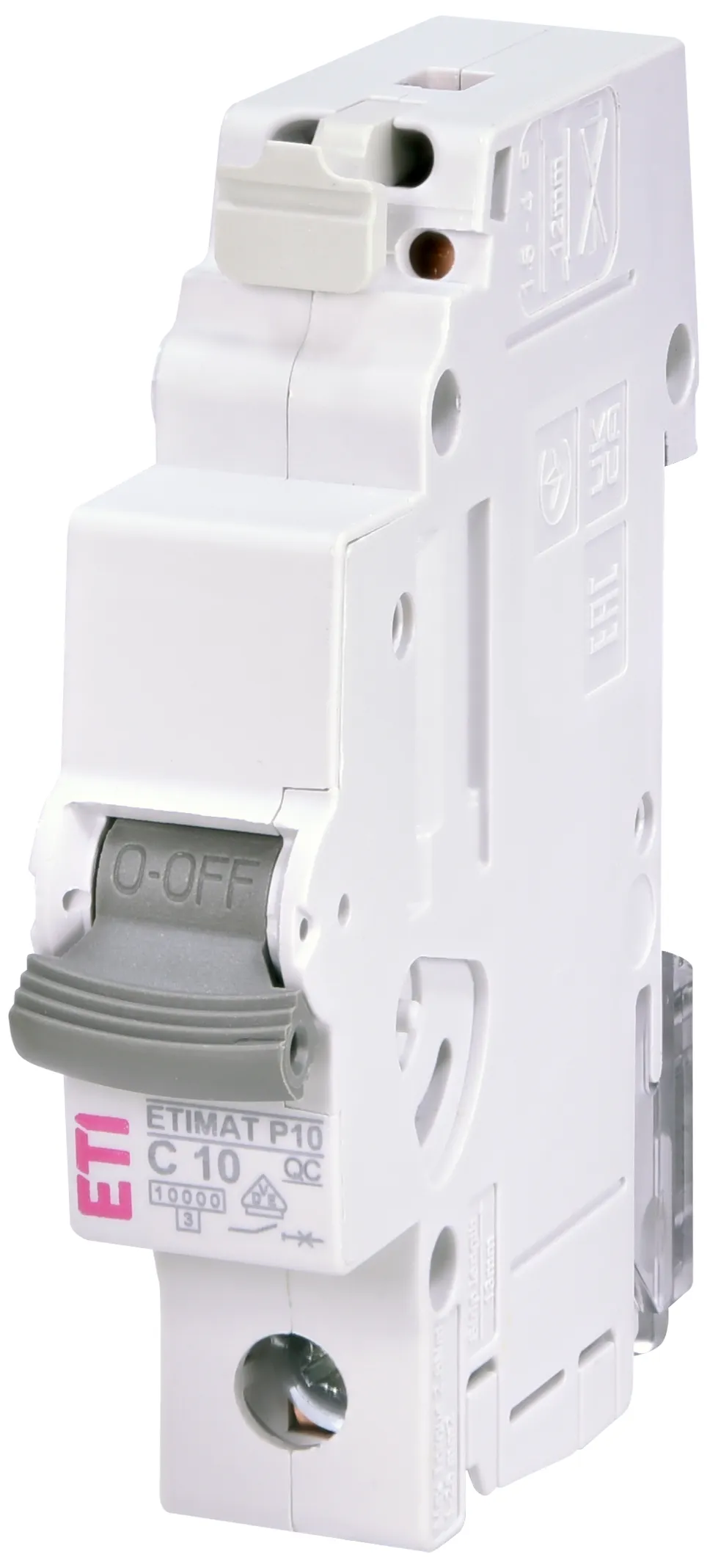

Disjunctor miniatural ETIMAT P10-QC 1p C16 001906030
Disponibil
La cerere
Va rugam solicitati informatii despre produs.
Specificatii
- Cod ETI:
- 001906030
- Descriere:
- ETIMAT P10-QC 1p C16
- Denumire clasă:
- Disjunctor miniatural
- Curent nominal (A):
- 16
- Caracteristică de întrerupere:
- C
- Număr de poli:
- 1
- Capacitatea de rupere (kA):
- 10
- Tipul voltajului :
- AC
- Tensiunea nominală(V):
- 240/415
- Frecvență nominală (Hz):
- 50/60
- Tensiunea nominala de rezistenta Uimp (kV):
- 6
- Secțiune transversală nominală:
- 1…4
- Standarde:
- 60898-1, 60947-2
- Funcție:
- MCB
Documente
Date logistica
Produse
- Cod produs EAN
- 3838400113313
- Greutatea produsului
- 121 g
- Tarif vamal
- 85362010
Ambalare de baza
- Cantitate
- 12
- EAN
- 3838400113320
- Greutate
- 1.28 kg
ambalare pentru transport
- Cantitate
- 108
- EAN
- 3838400113337
- Greutate
- 11.88 kg
- Cantitate. transport
- 5616
Clasificare ETIM
- Clasificare
- EC000042
- Denumire clasă
- Miniature circuit breaker (MCB)
- Release characteristic
- C
- Number of poles (total)
- 1
- Number of protected poles
- 1
- Rated current
- 16A
- Rated voltage
- 240/415V
- Rated insulation voltage Ui
- 500V
- Rated impulse withstand voltage Uimp
- 4kV
- Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
- 10kA
- Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
- 10kA
- Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
- 10kA
- Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
- 10kA
- Voltage type
- AC
- Frequency
- 50…60Hz
- Current limiting class
- 3
- Suitable for flush-mounted installation
- Da
- Concurrently switching neutral conductor
- Da
- Over voltage category
- 3
- Pollution degree
- 2
- Additional equipment possible
- Nu
- Width in number of modular spacings
- 1
- Built-in depth
- 70mm
- Degree of protection (IP)
- IP20
- Ambient temperature during operating
- -60…70°C
- Connectable conductor cross section multi-wired
- 1…4mm²
- Connectable conductor cross section solid-core
- 1…4mm²
