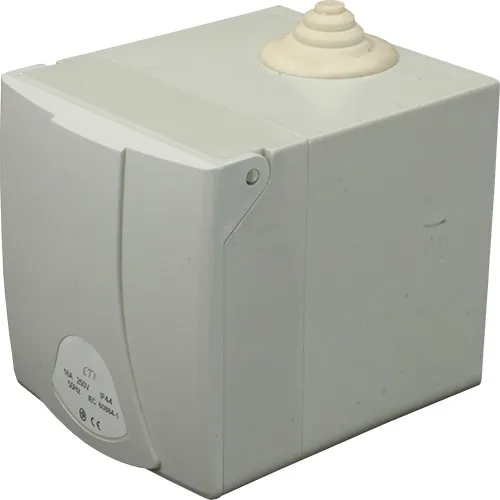

CEE priză EZBN 1653 004482105

Disponibil

Specificatii

Cod ETI:
004482105
Descriere:
EZBN 1653
Denumire clasă:
CEE priză
Curent nominal (A):
16A
Număr de poli:
3+N+PE
Grad de protecție IP:
IP44
Tip priză:
Cutie PT cu priză

Documente

Produse

Greutatea produsului
0.328  kg
Tarif vamal
85366990

Ambalare de baza

Cantitate
1
EAN
3838895675235
Greutate
0.33  kg

ambalare pentru transport

Cantitate
8
EAN
3838895675242
Greutate
2.64  kg
Cantitate. transport
840
Clasificare
EC001321
Denumire clasă
CEE socket outlet
Model
Surface mounted (plaster)
IEC-amperage
16A
Number of poles
3
Voltage according to EN 60309-2
400 V (50+60 Hz) red
Clock hour position
6h
Identification colour
Red
Degree of protection (IP)
IP44
Connection system
Screwed terminal
Material
Plastic
Type of fastening
Inner lying mounting
Clasificare ETIM – Clasificare ETIM Versiune 7.0

Imagini & Diagrame

004482105 Flush mounted enclosure CEE Socket, EZBN 1653 ETICEE Industrial plug-in equipment IP44 series IP44 series Surface mounted boxes with socket IP44 Surface mounted boxes with socket IP44 Industrial plugs, sockets and industrial distribution boxes ETICEE IP44, IP54-series Function Surface mounted box with socket IP44 Rated current 16A Rated voltage 400V Number of poles 3+N+PE IP rating IP44 Type: socket/plug Surface mounted boxes with socket Catalogue Group Sockets IP44 CEE Socket EZBN Surface mounted boxes with socket 16A 400V 3+N+PE IP44
