004110483

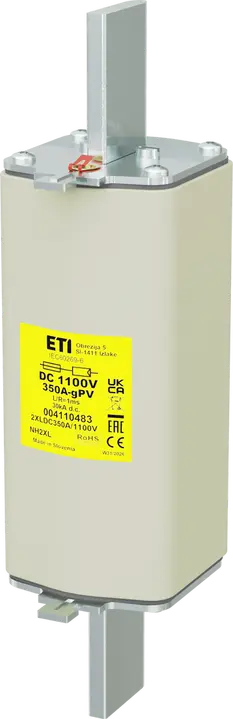

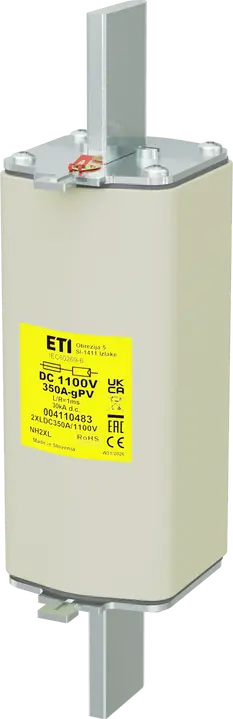

NH2XL gPV 350A/1100V DC Element fuzibil

Cod ETI:: 004110483
Tip:: NH
Mărime:: NH2XL
Curent nominal:: 350 A
Caracteristici:: gPV
Indicator:: Indicator principal al siguranței
Tensiune nominală DC:: 1100 V
Capacitatea de rupere DC:: 30 kA
L/R:: 2 ms
Disiparea puterii (0,7xIn):: 27 W
Putere disipată:: 65,5 W
Curentul de pre-arc (A2s):: 40.000
Operare Joule integrală (A2s):: 130.000
Standarde:: IEC 60269-6
Aplicație:: Fuse link for DC application

Accesorii

Produs

Greutate: 1.050 g
Net width: 55 mm
Net height: 209 mm
Net depth: 71 mm
Stock unit of measure: pcs

Ambalare de bază

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895714705
Basic packaging weight: 1,05 kg
Basic Packaging Dimensions Height: 0,064 m
Basic Packaging Dimensions Width: 0,222 m
Basic Packaging Dimensions Depth: 0,089 m
Basic packaging volume: 0,001 m³

Ambalare transport

Transport packaging quantity: 12 pcs
EAN code for a transport packaging: 3838895714712
Transport packaging weight: 12,95 kg
Transport Packaging Dimensions Height: 0,255 m
Transport Packaging Dimensions Width: 0,295 m
Transport Packaging Dimensions Depth: 0,235 m
Transport packaging volume: 0,018 m³
Pallet quantity: 624 pcs
Customs tariff: 85351000

Voltage type: DC
Fuse construction type according to IEC 60269: 2XL
Power loss at rated current: 65,5 W
Rated switching capacity DC: 30 kA
Type of fuse status indicator: Top fuse status indicator
Rated current: 350 A
Rated voltage DC: 1.100
Utilization category: gPV (photovoltaic protection)

Clasificare ETIM – versiunea 9.0
