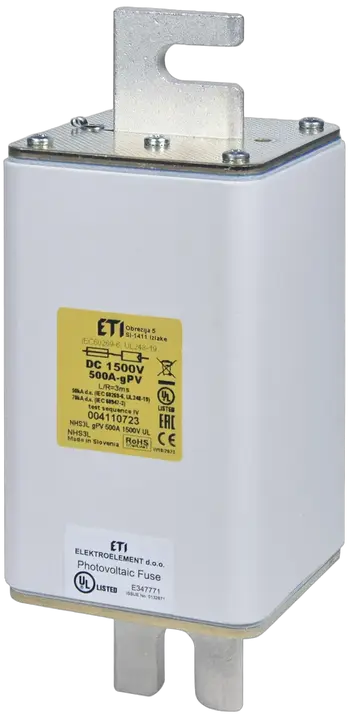

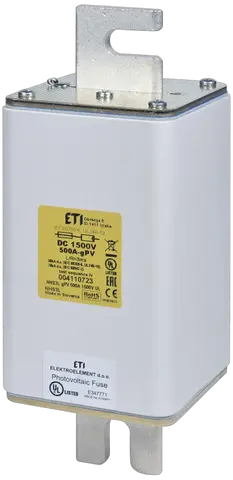

NHS3L gPV 500A/1500V DC 70kA Element fuzibil

Cod ETI:: 004110723
Tip:: NH-S
Mărime:: NH3L
Curent nominal:: 500 A
Caracteristici:: gPV
Indicator:: Indicator principal al siguranței
Tensiune nominală DC:: 1500 V
Capacitatea de rupere DC:: 70 kA
L/R:: 3 ms
Disiparea puterii (0,7xIn):: 44,3 W
Putere disipată:: 79 W
Curentul de pre-arc (A2s):: 160.000
Operare Joule integrală (A2s):: 700.000
Standarde:: IEC 60269-6, UL 248-19
Aplicație:: Fuse link for DC application

Accesorii

Produs

Greutate: 1.980 g
Net width: 73 mm
Net height: 198 mm
Net depth: 73 mm
Stock unit of measure: pcs

Ambalare de bază

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895863922
Basic packaging weight: 2,04 kg
Basic Packaging Dimensions Height: 0,077 m
Basic Packaging Dimensions Width: 0,224 m
Basic Packaging Dimensions Depth: 0,102 m
Basic packaging volume: 0,002 m³

Ambalare transport

Transport packaging quantity: 9 pcs
EAN code for a transport packaging: 3838895863939
Transport packaging weight: 18,71 kg
Transport Packaging Dimensions Height: 0,255 m
Transport Packaging Dimensions Width: 0,295 m
Transport Packaging Dimensions Depth: 0,235 m
Transport packaging volume: 0,018 m³
Pallet quantity: 468 pcs
Customs tariff: 85351000

Rated switching capacity AC: 70 kA
Voltage type: DC
Fuse construction type according to IEC 60269: 3L
Rated voltage AC: 1.500 V
Power loss at rated current: 79 W
Rated switching capacity DC: 70 kA
Type of fuse status indicator: Top fuse status indicator
Rated current: 500 A
Rated voltage DC: 1.500
Utilization category: gPV (photovoltaic protection)
