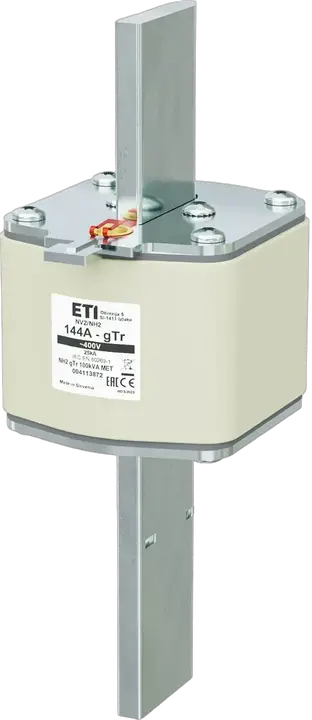

NH2 gTr 144A/400V/100kVA MET Element fuzibil

Cod ETI:: 004113872
Transformator:: 100 kVA
Tip:: NH
Mărime:: NH2
Curent nominal:: 144 A
Caracteristici:: gTr
Indicator:: Indicator principal al siguranței
Tensiune nominală AC:: 400 V
Capacitatea de rupere AC:: 25 kA
Putere disipată:: 11 W
Standarde:: IEC EN 60269-1
Aplicație:: As metering fuse with strip fuse switch disconnector and fuse switch disconnector

Accesorii

Produs

Greutate: 490 g
Net width: 54 mm
Net height: 152 mm
Net depth: 71 mm
Stock unit of measure: pcs

Ambalare de bază

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895618751
Basic packaging weight: 0,54 kg
Basic Packaging Dimensions Height: 0,152 m
Basic Packaging Dimensions Width: 0,075 m
Basic Packaging Dimensions Depth: 0,062 m
Basic packaging volume: 0,001 m³

Ambalare transport

Transport packaging quantity: 16 pcs
EAN code for a transport packaging: 3838895618768
Transport packaging weight: 8,99 kg
Transport Packaging Dimensions Height: 0,255 m
Transport Packaging Dimensions Width: 0,295 m
Transport Packaging Dimensions Depth: 0,235 m
Transport packaging volume: 0,018 m³
Pallet quantity: 832 pcs
Customs tariff: 85361090

Rated switching capacity AC: 25 kA
Voltage type: AC
Fuse construction type according to IEC 60269: NH2
Rated voltage AC: 400
Power loss at rated current: 11 W
Type of fuse status indicator: Top fuse status indicator
Rated current: 144 A
Utilization category: gTr (Transformer protection)

Clasificare ETIM – versiunea 9.0
